30 Minute – 4 Cylinder – Fire Cabinet
H2050 x W1200 x D615mm

SKU:

£2,731.00

£3,277.20 - £3,277.20 Inc. VAT

Description

Fire resistant rated stroage cabinets ensure the safe storage of gas cylinders indoors without the need for expensive and complex store-room construction.

Certified to EN 14470-2 standard, our cabinets offer a cost effective, peace of mind solution for storing compressed gas indoors. From the European leader in hazardous storage, Asecos, our 30 and 90 minute rated cabinets offer the highest available quality and all come with a 5 year warranty.

Please also see our GCD30-14 which offers the same capacity but with more internal space, allowing for greater configuration and easier cylinder access.

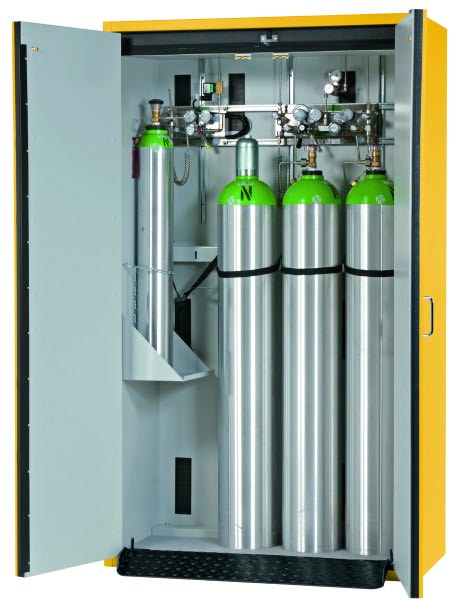

Please note: The cabinet imaged is with the OPTIONAL lateral cylinder accessory. This does not come as standard – please contact us for a quote.

GCD30-12
External Dimensions H2050mm x W1200mm x D615mm
Internal Dimensions H1890mm x W1095mm x D480mm
Unit Empty Weight * 485KG
Capacity 4 x 50L
EN Standard NS-EN 12952 2 / 14470-2
RAL7035 Grey Lead time 12 – 14 Weeks
RAL1004 Yellow Lead Time 12 – 14 Weeks

*Please take into account the weight of these units when choosing delivery options and location of delivery, as some units may exceed mezzanine floor weight limits.

  • Tall – 1,890mm interior height for easy mounting and connection of gas
  • Easy Access –  Fold out Rolling Ramp to facilitate easy installation and removal of cylinders
  • Ventilation – Integrated NW75 air ducts in unit ceiling for for connection exhaust system
  • Secure – Cylinder lock
  • Tension cylinder retainers for stable, secure storage.
  • Do not require additional piping insulation
  • Simple floor adjusting aids (Point of Use delivery includes leveling)

Please see our comparison tables for a full overview of our cabinet range, and the other benefits of the 90 minute over the 30 minute system.


Delivery

Standard Delivery is free, however only includes delivery to goods inwards. Beyond this, you will require your own team to move and unpack the units.

We highly recommend choosing delivery to Point of Use (PoU).  Point of Use delivery is subject to a site survey.

PoU Includes PoU Requires
Delivery to required room Site Survey document completion
Packaging Removal
Leveling of unit so it is ready for use and connection

Due to the weight of the units (Up to 700kg) , Point of Use delivery makes delivery hassle-free, and ensures you are not left with a several hundred kilo unit restricting site access.

To choose this option, please select the ‘PoU’ option below.


Accessories

If you have specific requirements of functionality for your unit, please contact us. We have a wide range of accessories available that allow your fire cabinets to be customised upon request.

Some of the accessories we are able to offer:

  • Lateral cylinder retainer for 10L cylinders
  • Extra straps
  • Extra transport protection packaging

Additional information

Product

GCD30-12, GCD30-12

Colour

Grey, Yellow
