X – GUARD – The Fully Compliant Modular System

Modular Easy Construction

Easily Visible

Full Design Service Available

Machine Guard Directive Compliant

Easy Panel Removal

Save time with unique Accessories

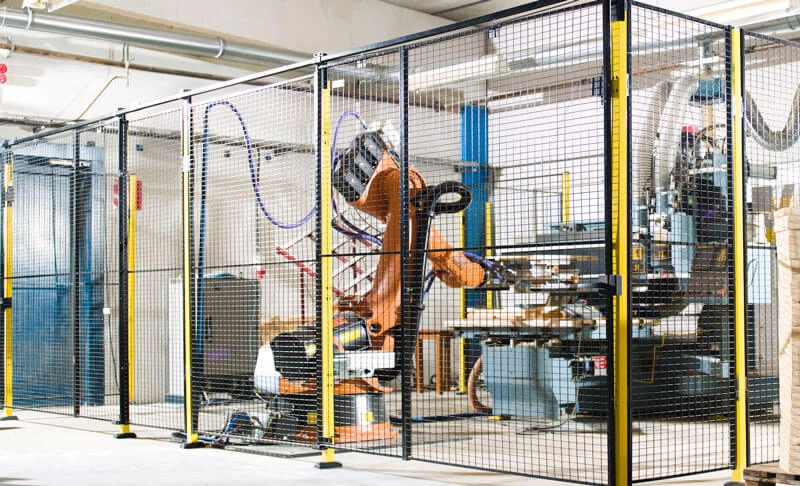

X-Guard – The Flexible, Safe System

X -Guard is a Modular Machine Guarding system that complies with the latest Machine Guard Directive ‘2006/42/EC’ which came into force on 29th December 2009.

Standard colours of Yellow RAL1018 Posts and Black RAL9011 Panels ensure the danger area is highlighted while keeping the machine clearly visible.

Revolutionary captive fixings for securing the panels to the posts allowing easy removal for service access.

These ensure that X -Guard complies with the latest Machine Guard Directive and also carries the following benefits:

  • Fast and easy installation
  • Ability to quickly swap a ‘wall panel’ for a ‘door panel’ if required
  • Change door hinge and lock handing if required
  • Full design service available
Modular Machine Guarding - easy install guarding

Easy Construction

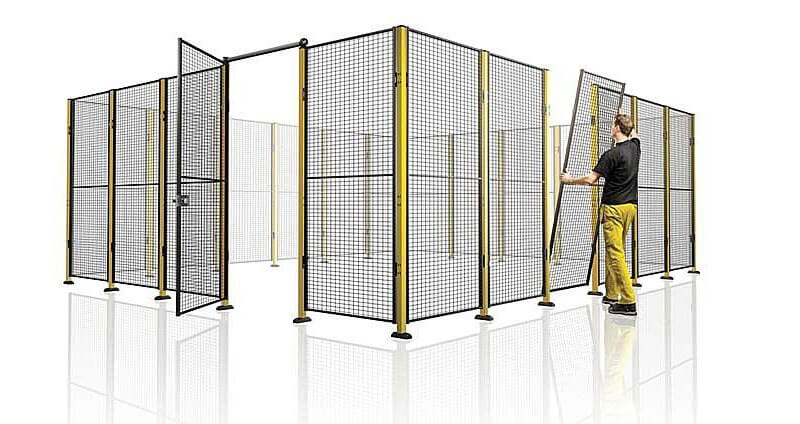

Removal of panels is fast and can easily be carried out by one person using the supplied ‘X-Key’, from either inside or outside of the enclosure. Panels simply snap into place, and is ideal self-assemble machine guarding.

For a full quotation simply complete our enquiry form.

View the X-Key in action
Modular Machine Guarding - tools

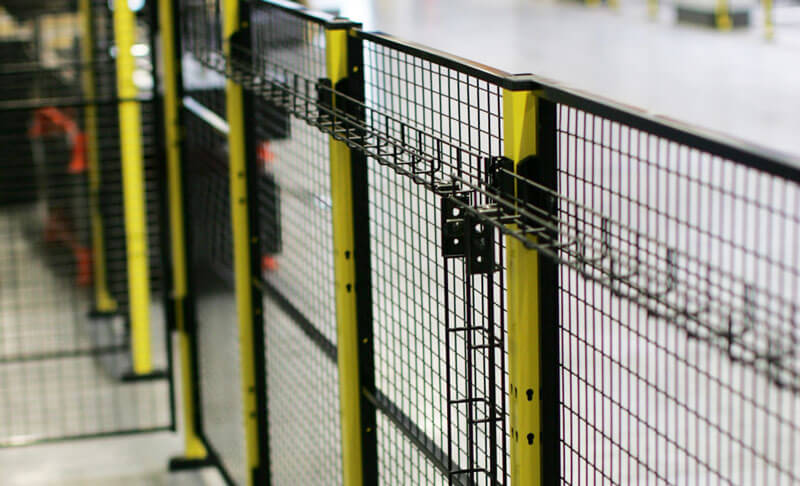

Stakrak are unique in their ability to offer a wide range of accessories available for our machine guarding system.

This offers additional functionality and work space over traditional systems, providing neat, tidy workspaces.

Please see our accessories page for our full range.

View Accessories

X–Guard Quick & Cost Effective

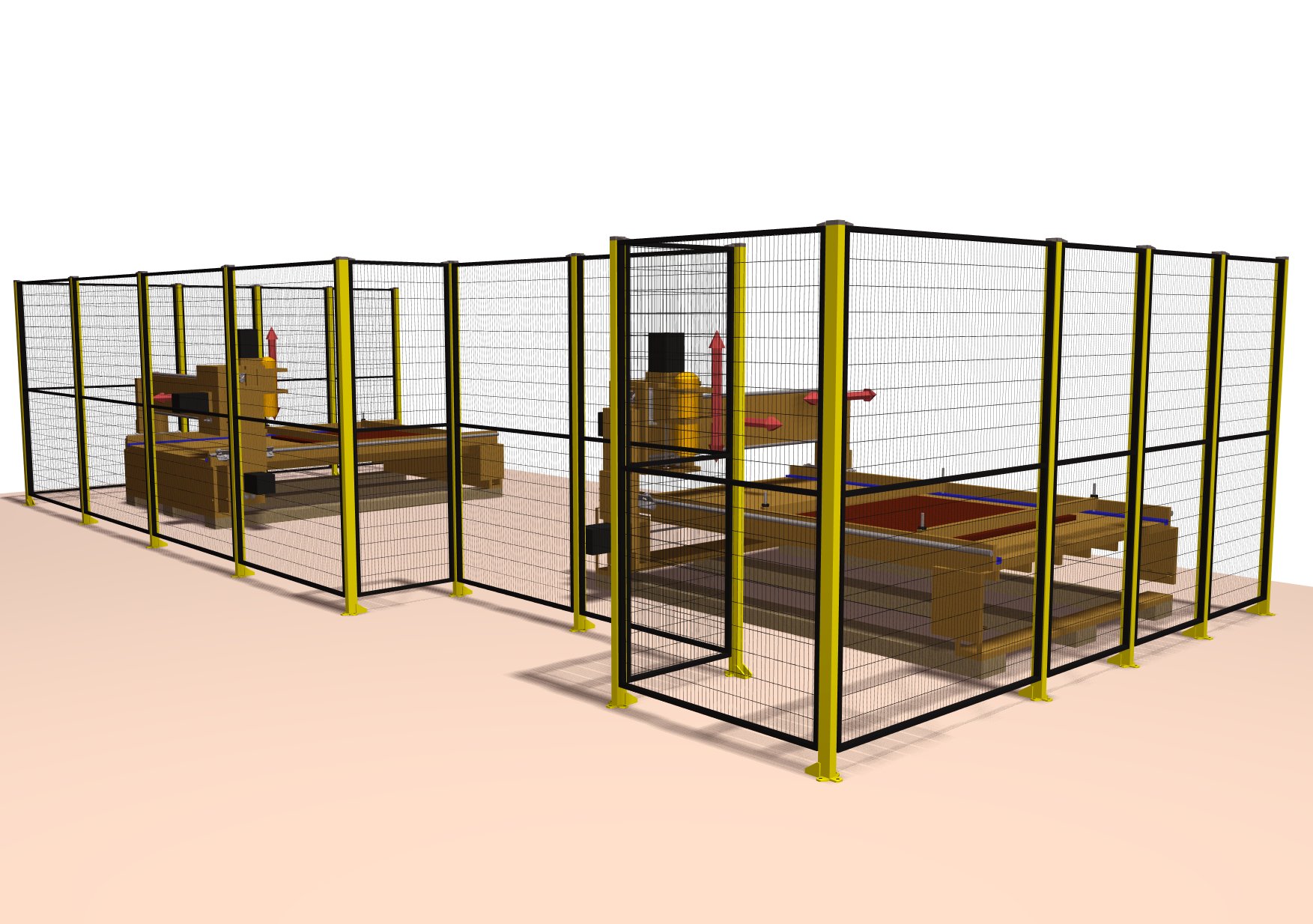

Full design service with layout drawings available.  We aim to have a quote and drawing back to you within 48 hours!

Being a modular system, we can keep most materials in stock and can usually deliver within 1 week of order. This also makes it very cost effective compared to a bespoke Machine Guarding system.

Please click here to see an example layout drawing. 3D images also available.


All materials are packed in wooden boxes to ensure they arrive in perfect condition.

Not exactly sure what you need? Please call or email us to discuss your particular requirements.

Installation Service
Stakrak offers a competitive nationwide installation service by professional and fully CSCS trained teams with many years of experience.

Standard Panel

The go-to cost effective panel provides security and can be quickly released using the X-key. A bright yellow frame defines a clear barrier of partitioned areas.

For full technical information, please click here.

Custom colours are available are on request for both posts and mesh.

Tool Panel

Our unique Tool Panel provides storage space for a wide variety of tools. This cuts down change over times and increases productivity and workspace tidiness.

Heights (mm): 1900, 2200
Width: 700
Colour: RAL9011

Please see our accessories page for a list of the full range of accessories available.

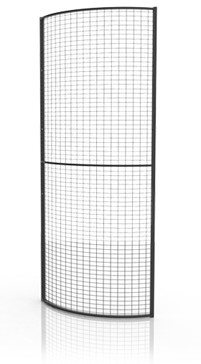

Modular Machine Guarding - panel contour

Contour Panel

This unique panel gives a professional alternative for finishing corners where space is limited.

Heights (mm): 1300, 1900, 2200
Mesh Aperture: 50 x 20 mm
Wire Thickness: 2.5mm
Mesh Colour: RAL9011
Post Colour: RAL1018

Other Locks available on request including Padlock-able and Panic locks.

Technical Information

Standard Heights

1,300mm, 1,900mm, 2,200mm. All include a 100mm floor gap.

Standard Widths

250mm, 400mm, 500mm, 600mm, 700mm, 800mm, 900mm, 1,000mm, 1,100mm, 1,200mm, 1,300mm, 1,400mm,1,500mm

Panel Specification

Uprights: 30mm x 20mm; Horizontals: 25mm x 15mm; Posts: 50mm x 50mm x 2.5mm; Vertical wires: 3mm; Horizontal wires: 2.5mm; Mesh Aperture: 51mm x 31mm; Finish: Phosfatizing/Epoxy Paint

Standard Colours

Panel: Black RAL9011; Post: Yellow RAL1018. Any other RAL colour available on request. Additional charge applies.

X – Guard not for you?

No problem. We offer a full range of perimeter guard systems from all the leading manufacturers in Europe. Please contact Stakrak for further details.
