Wire Mesh Panel Partitioning

Modular mesh partition systems

Request a Quote

Wire Mesh Panel Partitioning

Secure

Professional

Future Proof

Modular

From Stock

Cost Effective

The system is finished in extremely high quality, and can be easily modified and extended in the future.

Secure

A range of doors and lock systems provides dependable enclosures for theft-prone products and materials.

Contents fully visible through mesh provides visibility for CCTV.

Modular

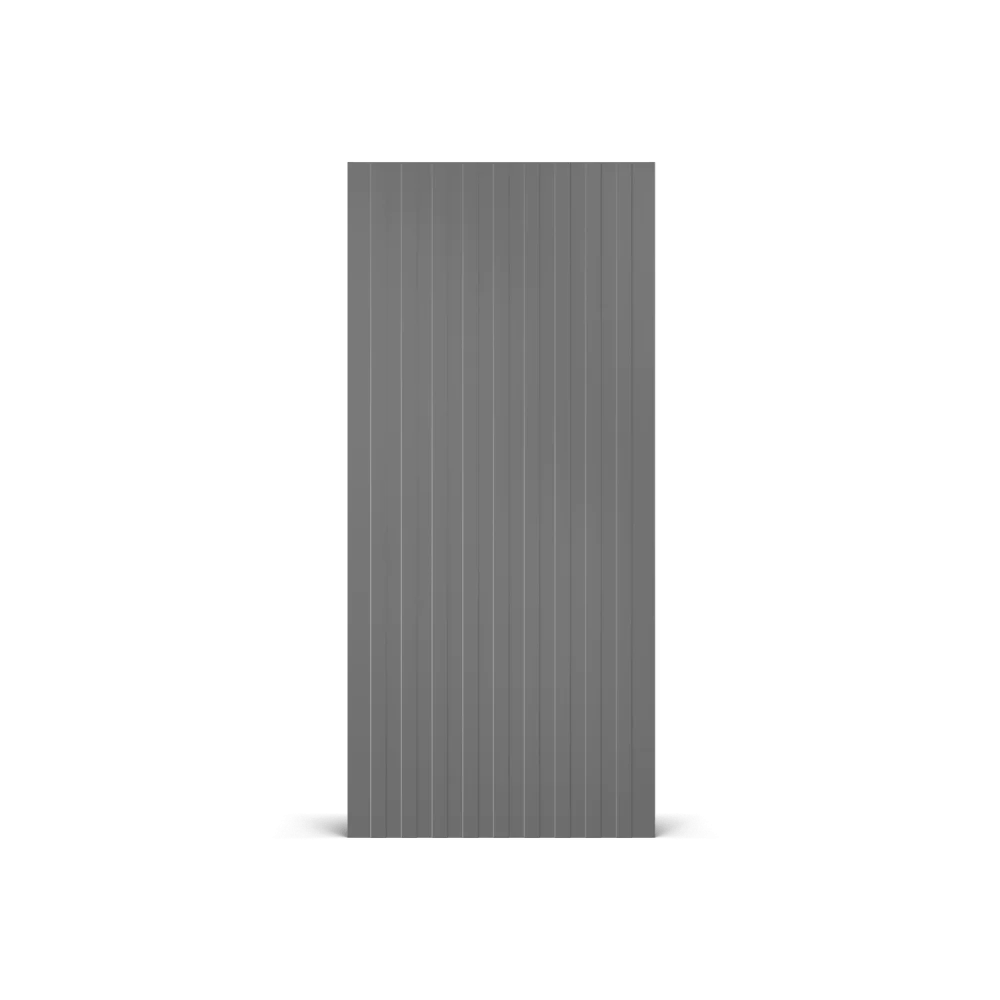

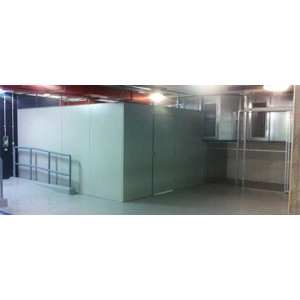

Mix and Match Panels: Mesh or Solid Steel.

Quick, easy installation and relocation. Panels can be modified on site.

Flexible, able to reconfigure with changing requirements.

Quick Delivery

Delivery to site can usually be expected within 3 days from point of order.

Cost Effective

The unique ability to adapt and change allows you to add to the partitioning, rather than replace it.

Mesh Partitioning - installation service logo

Bespoke Modular Mesh Partitioning

We offer a comprehensive service for architects, builders, designers, contractors and end users.

This can be supply only or supply and full Nationwide installation.

Delivery to site can usually be expected within 3 days from point of order.

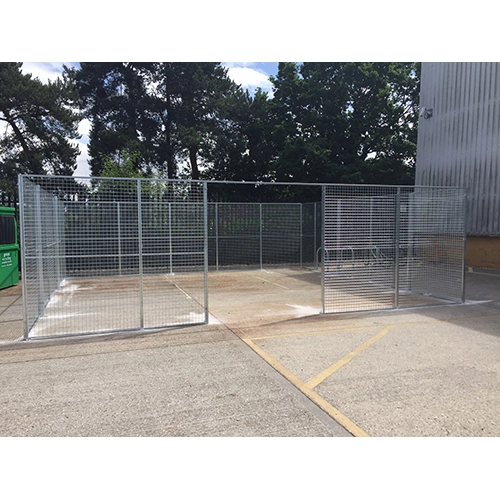

We offer solutions to cage-off or partition any area, inside or external using our modular panel system, which is a quick and cost-effective solution. Doors can be hanging or sliding, in a large range of standard sizes and with a choice of locking systems.

As a ‘modular’ system, huge quantities are available from STOCK, both in Painted or Galvanised finish, for quick delivery

Mesh Panel Options

Finishes: Galvanised or Light Grey Powder Coated (Expect 25% surcharge for other RAL colours).

All Panels can be easily cut to fit design at point of installation.

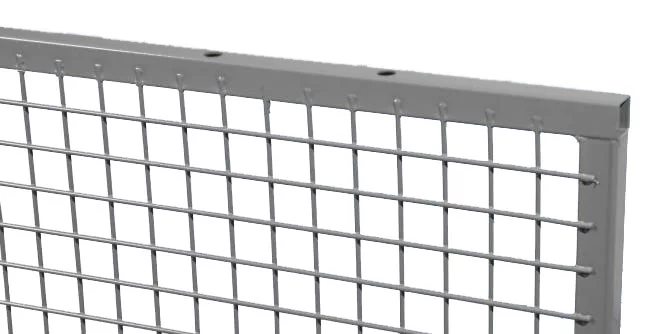

The STAK325 is suitable for high security applications, such as storing aerosols, hazardous or high value goods.

Please note panels are in order of cost with STAK 350 being the most cost effective and STAK550 being the most premium option.

Powder coating finishes are more suited for indoor applications. We suggest galvanised if your partition will be exposed to the elements.

http://mesh%20panel%20options

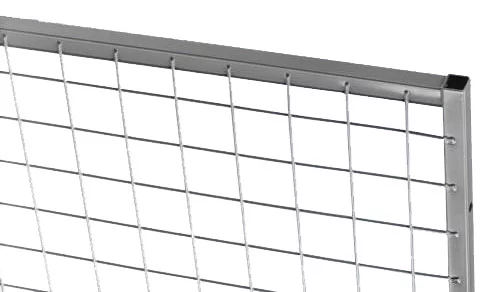

– Lightweight
– Economical
– Wider mesh
– Most cost effective option

Mesh Aperture: 50 x 50
Frame/Tube: 19 x 19
Wire: 2.5 x 2.5
Heights Available: 2200, 3000, 4400
Widths Available: 200, 300, 700, 800, 1000, 1200, 1500

All sizes in mm

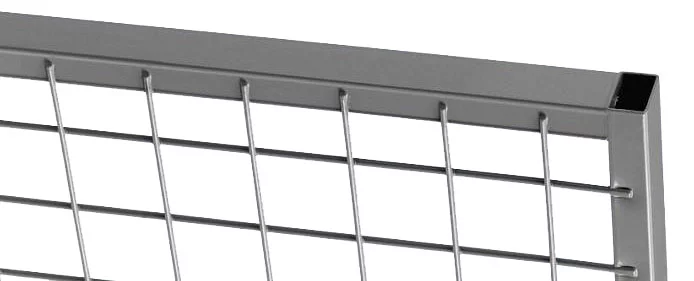

Thick wire and thick frame adding additional strength.

Mesh Aperture: 50 x 50
Frame/Tube: 30 x 20
Wire: 3.0 x 3.75
Heights Available: 2200, 3000, 4400
Widths Available: 200, 300, 700, 800, 1000, 1200, 1500

All sizes in mm

Tighter mesh restricts hand access. Ideal for storage of aerosols.

Mesh Aperture: 25 x 25*
Frame/Tube: 19 x 19
Wire: 2.5 x 2.5
Heights Available: 2200, 3000, 4400
Widths Available: 200, 300, 700, 800, 1000, 1200, 1500

All sizes in mm

Super heavy duty. Extra thick wire for added security.

Mesh Aperture: 50 x 50
Frame/Tube: 30 x 20
Wire: 5 x 5
Heights Available: 2200
Widths Available: 200, 300, 700, 800, 1000, 1200, 1500

All sizes in mm

Doors

Our doors are available in a number of sizes.

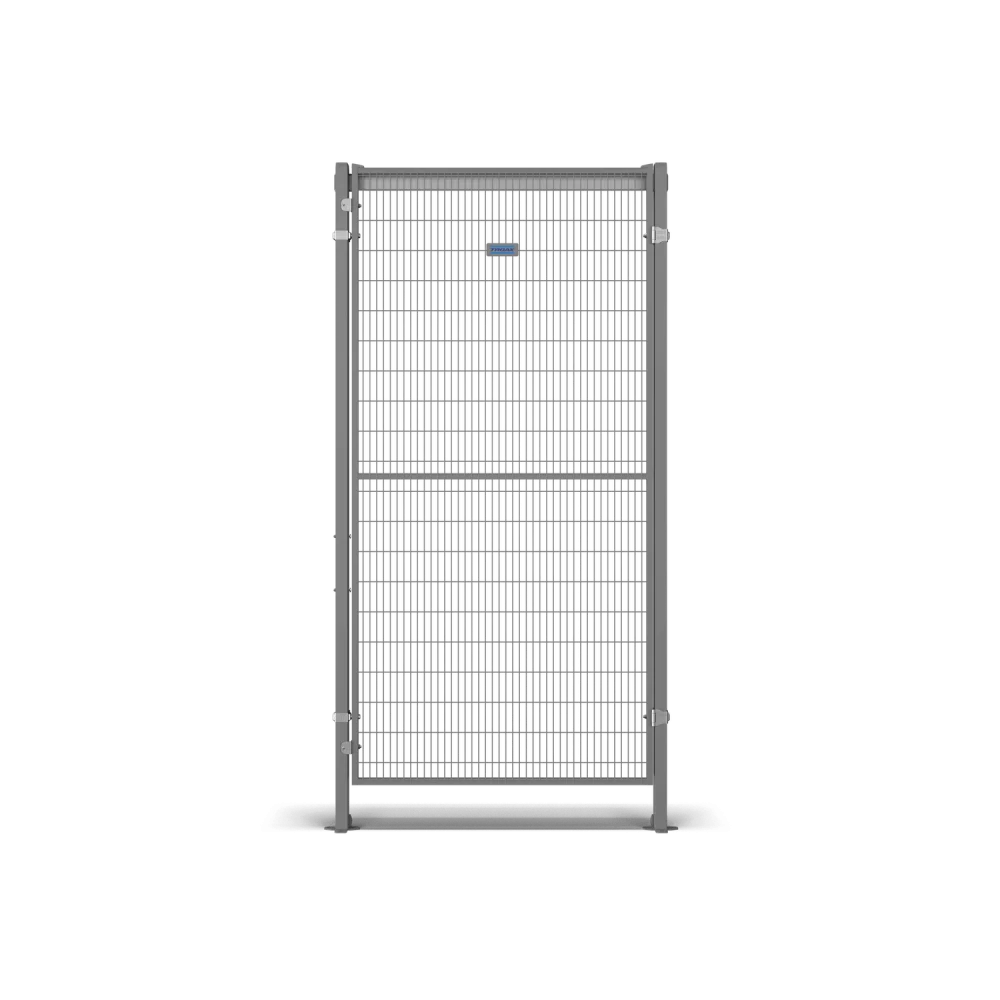

Hinged doors are available as either Single or Double.

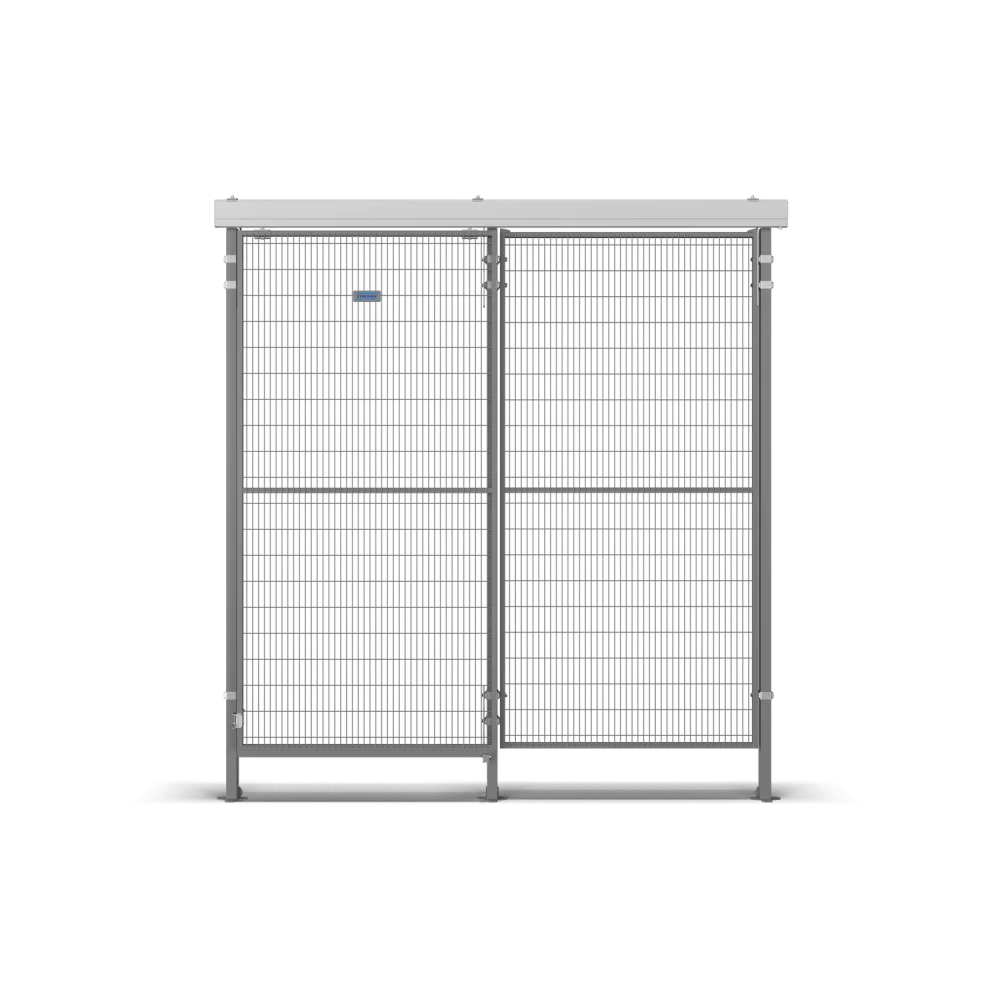

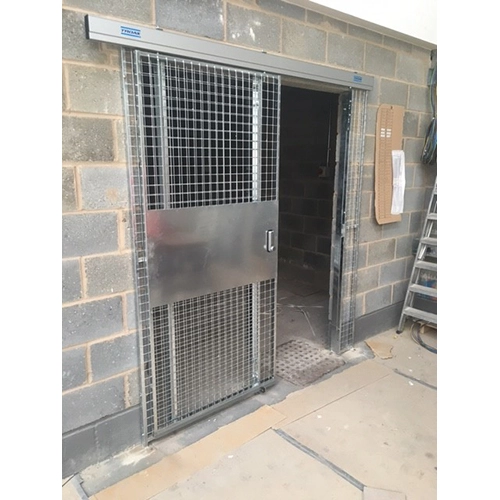

Sliding doors allow easy access in restrictive, space limited environments.

Double-sliding doors available provide wide access – up to 2300mm.

  Single Double
Hinged – Width (mm) 1000 or 1200 2000 or 2400
Sliding – Width (mm) 900, 1100, 1900, 2900 1900, 2300
Single
Hinged – Width (mm) 1000 or 1200
Sliding – Width (mm) 900, 1100, 1900, 2900
Double
Hinged – Width (mm) 2000 or 2400
Sliding – Width (mm) 1900, 2300

Locks

Our locks are available in a number of types.

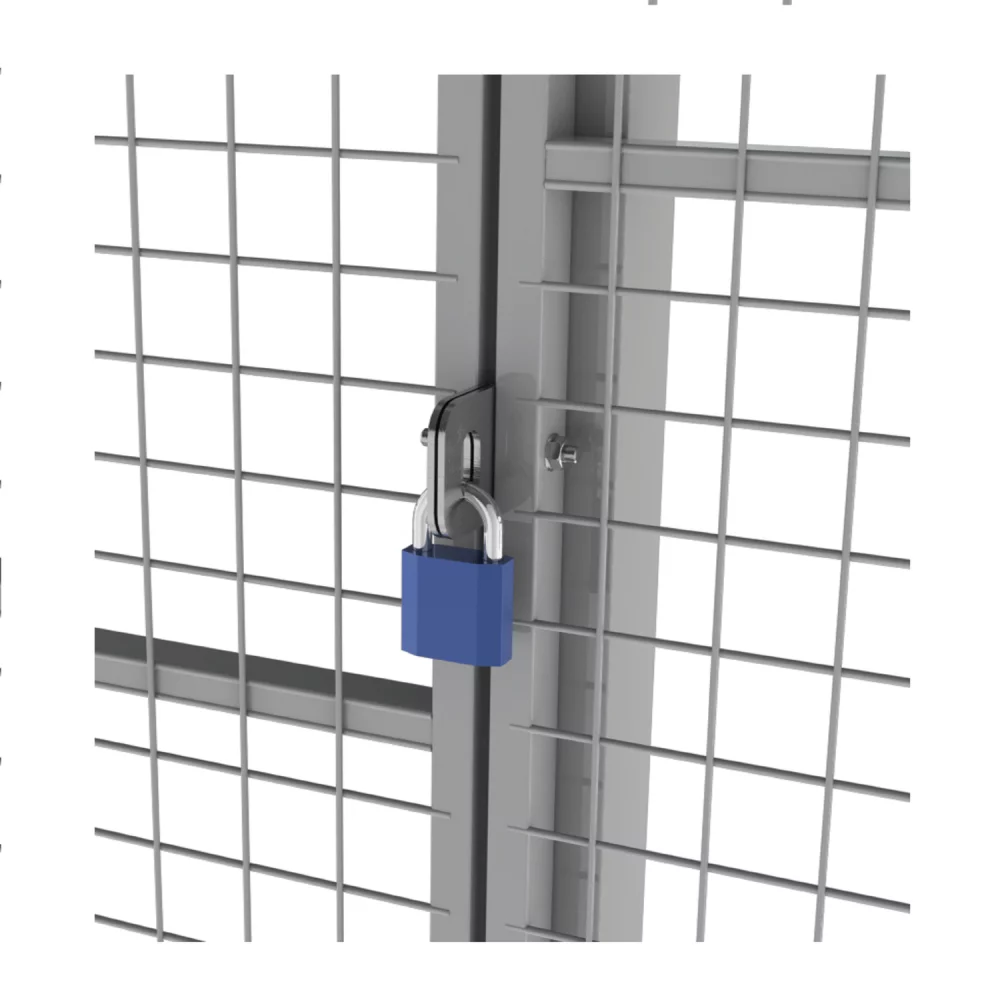

Padlock Bracket: The traditional security method that allows for padlocks to simply be fed through and hang freely.

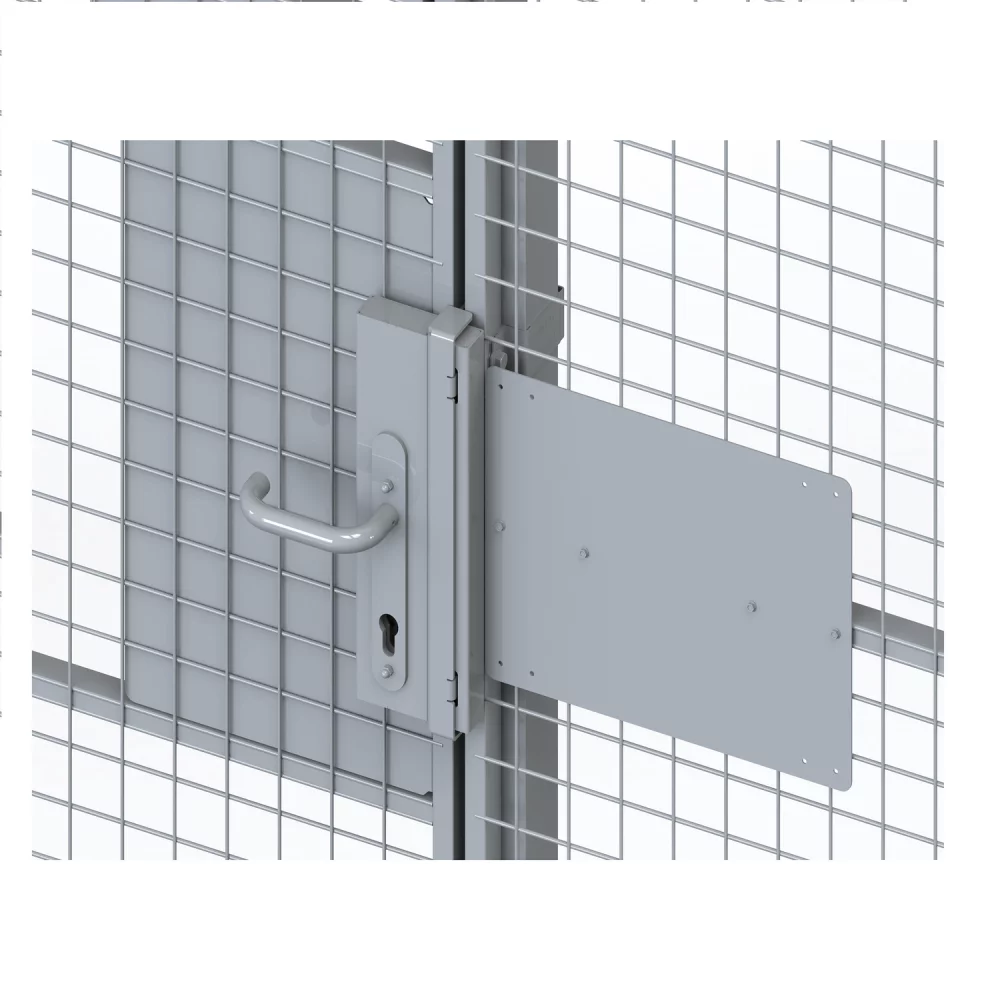

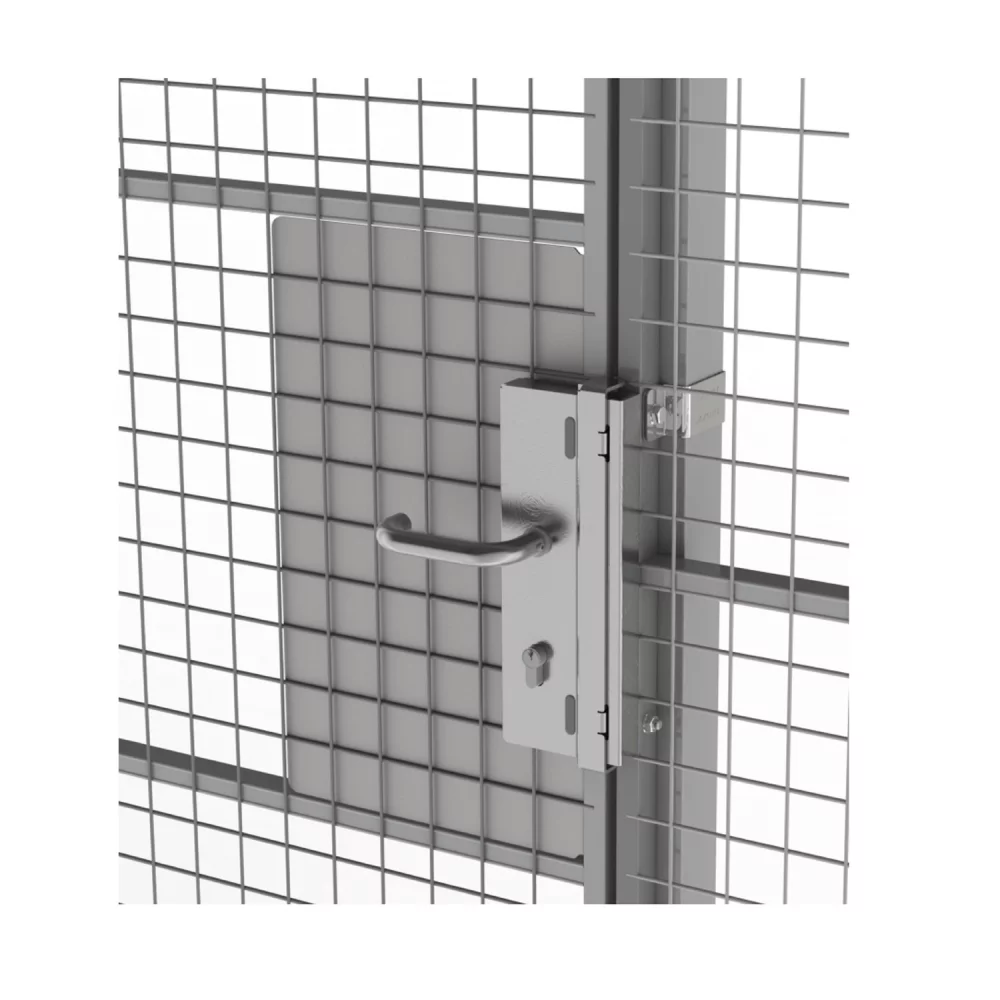

Cylinder Lock: A neater handled option with cylinder lock.

Digi lock: A traditional, high security option. Provides a pin-code

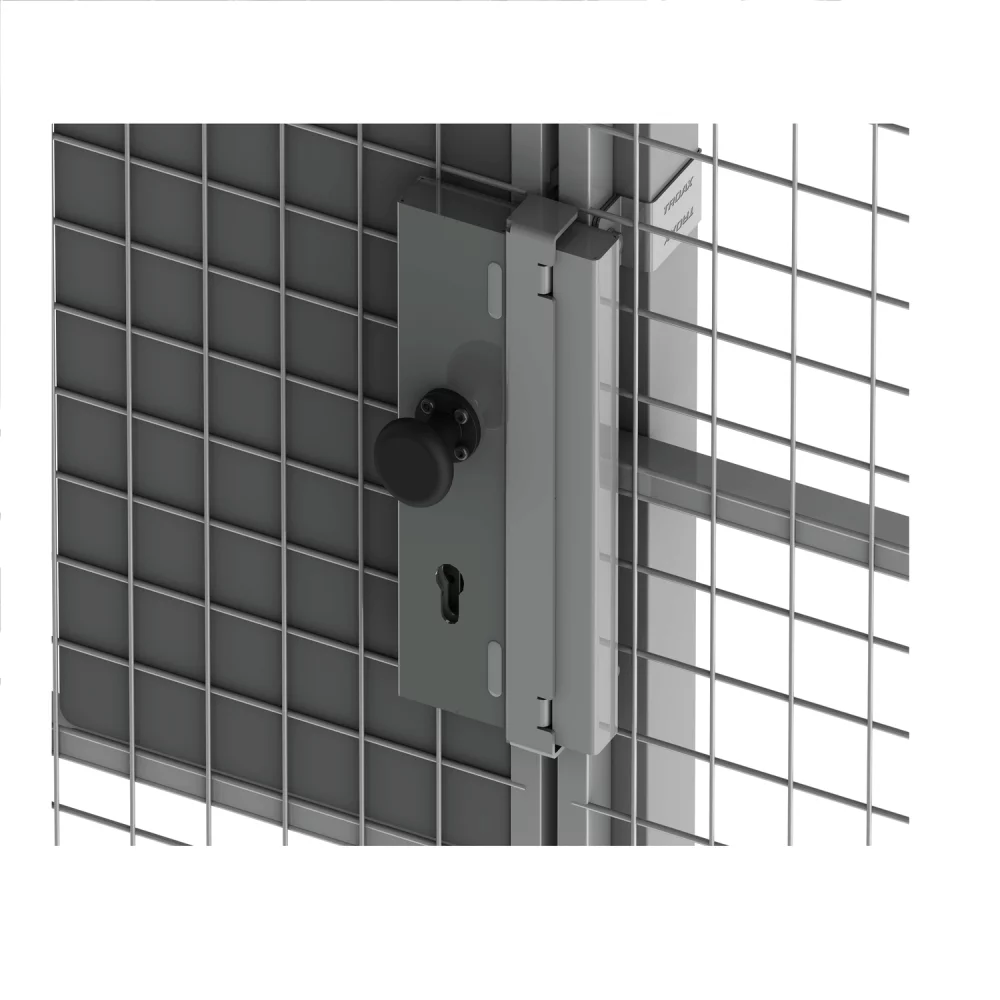

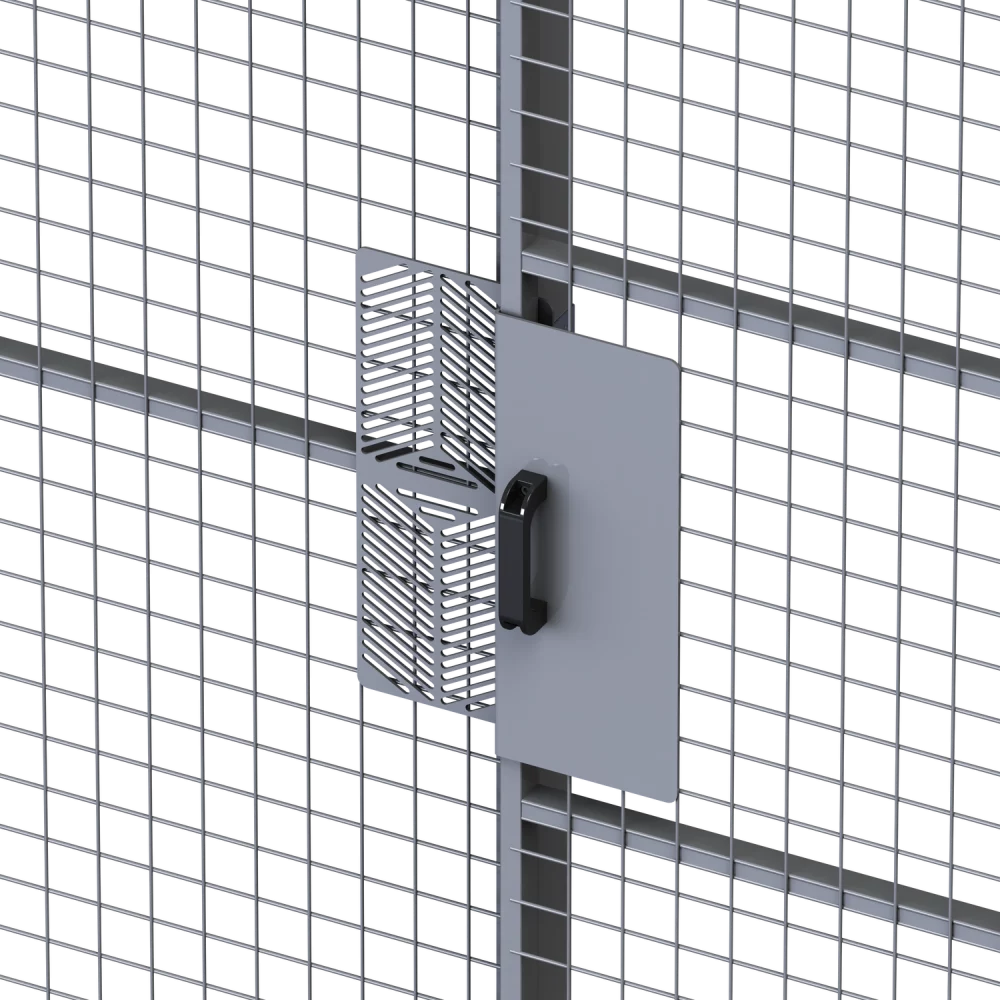

Electric Strike: High tech system unlocked through a key fob. The complete door unit is supplied, however security system and fobs must be fitted by others.

Emergency Exits

Only suitable for indoor use

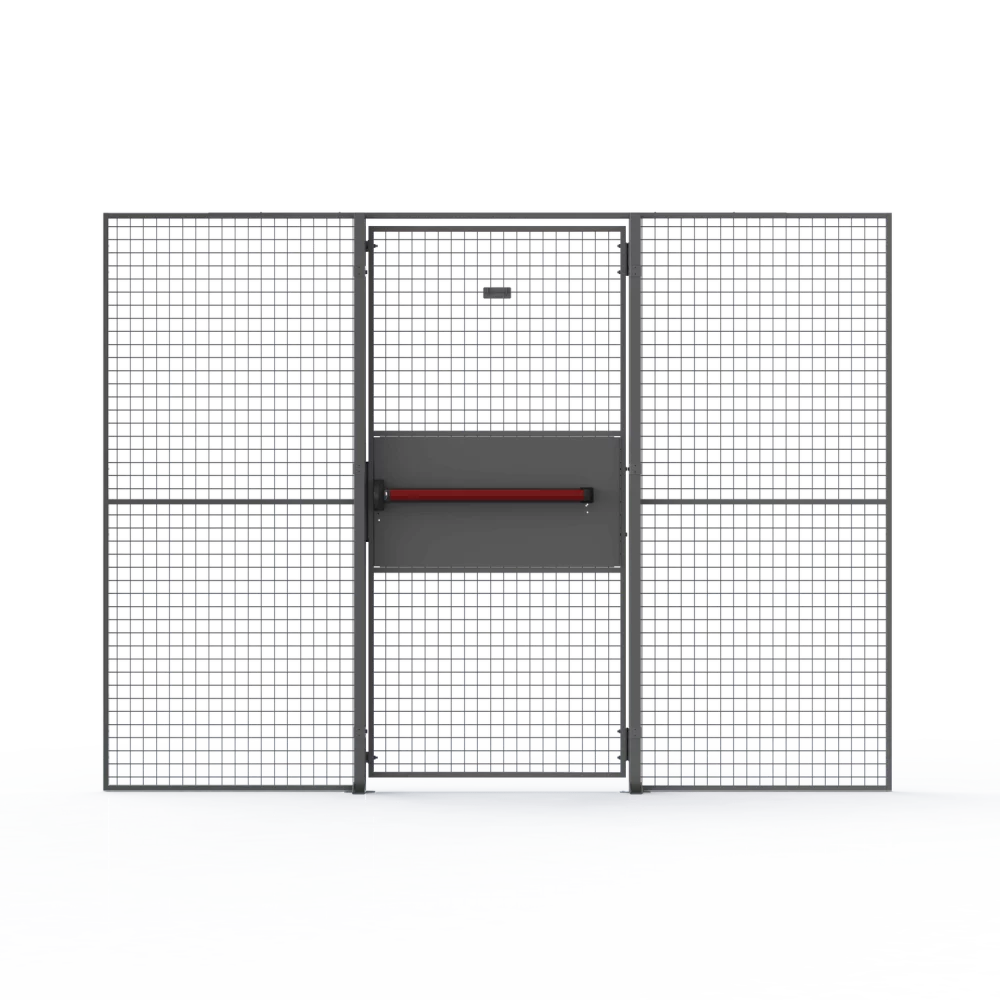

Push Bar: The traditional push-to-release bar.

Push Pad: A simple single pad to push-to-release.

For a full quotation simply contact our Mesh Department providing as much information as possible and ideally attaching a sketch or drawing of your requirement, or fill out our enquiry form.

Installation Examples and Case Studies

Stakrak offers a competitive nationwide installation service by professional and fully CSCS trained teams with many years of experience.

Below are examples of the installations we have performed.

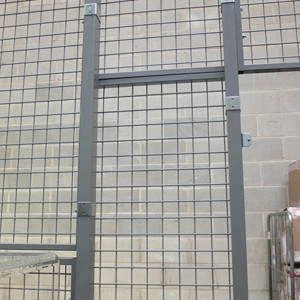

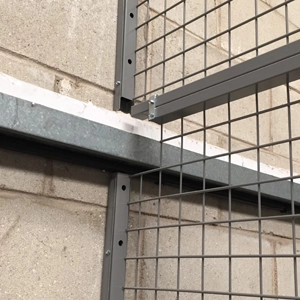

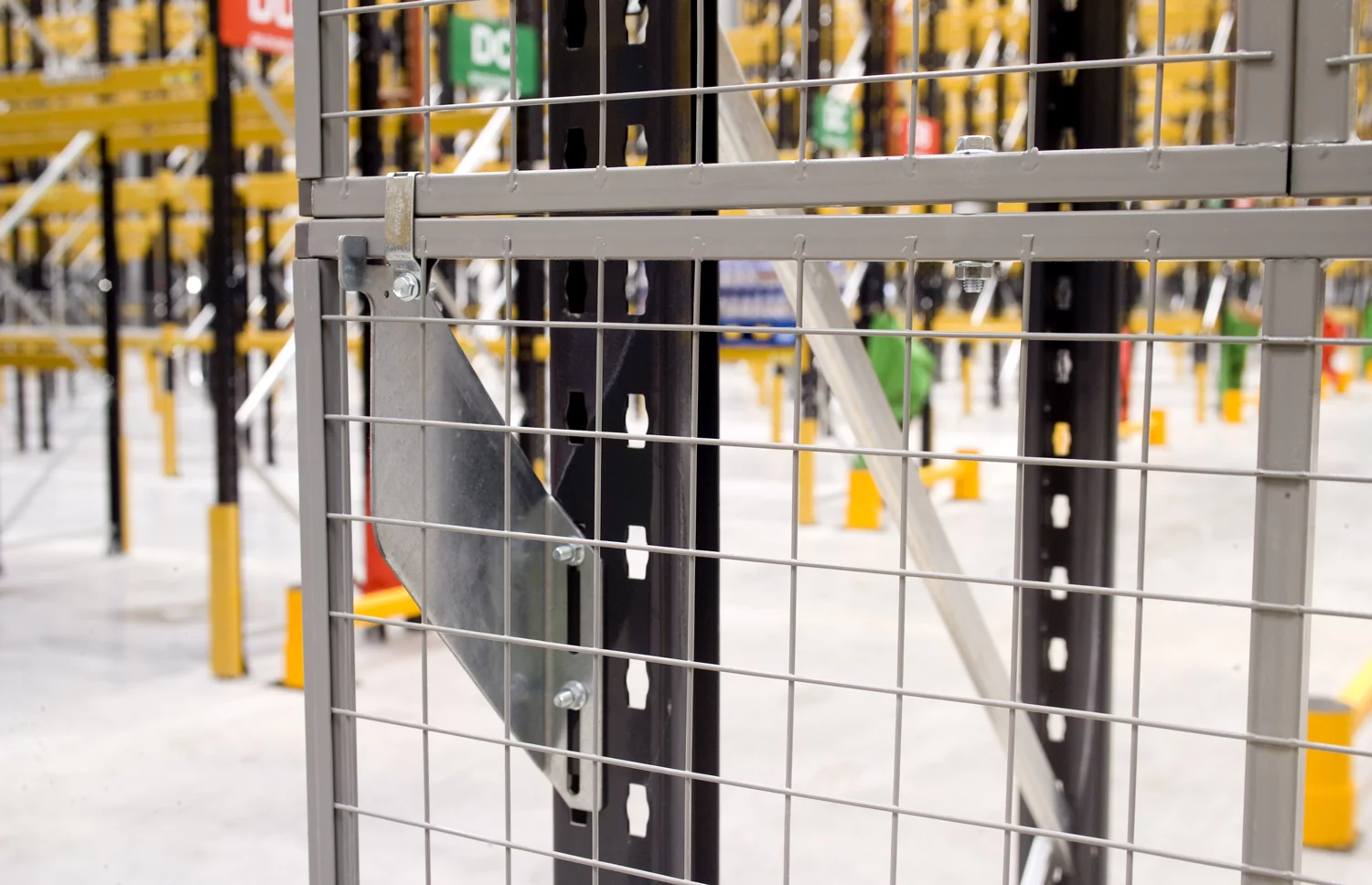

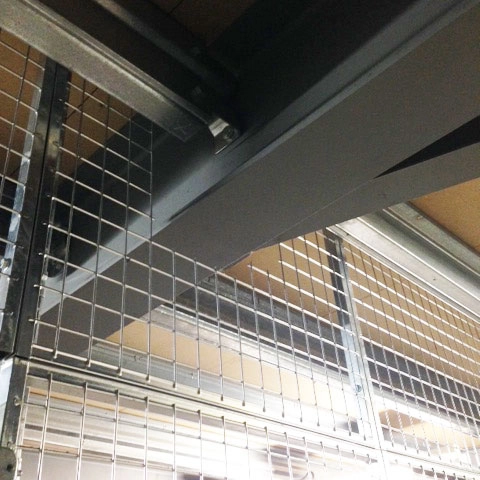

Adjustable on Site

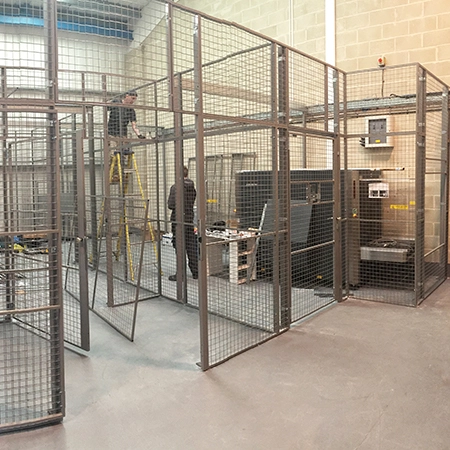

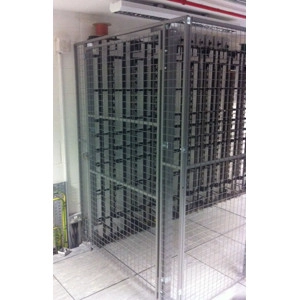

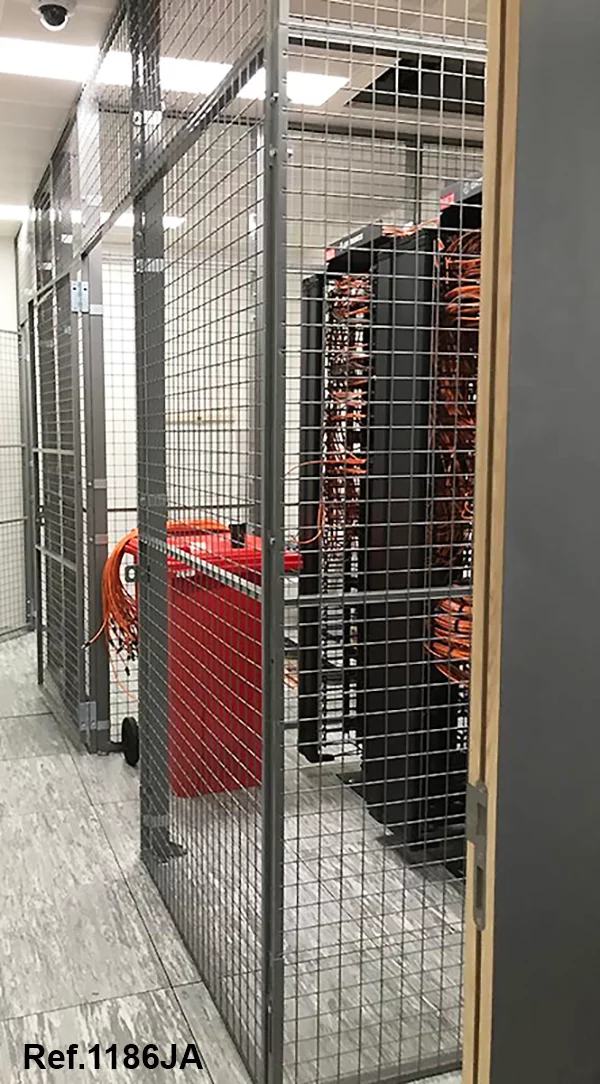

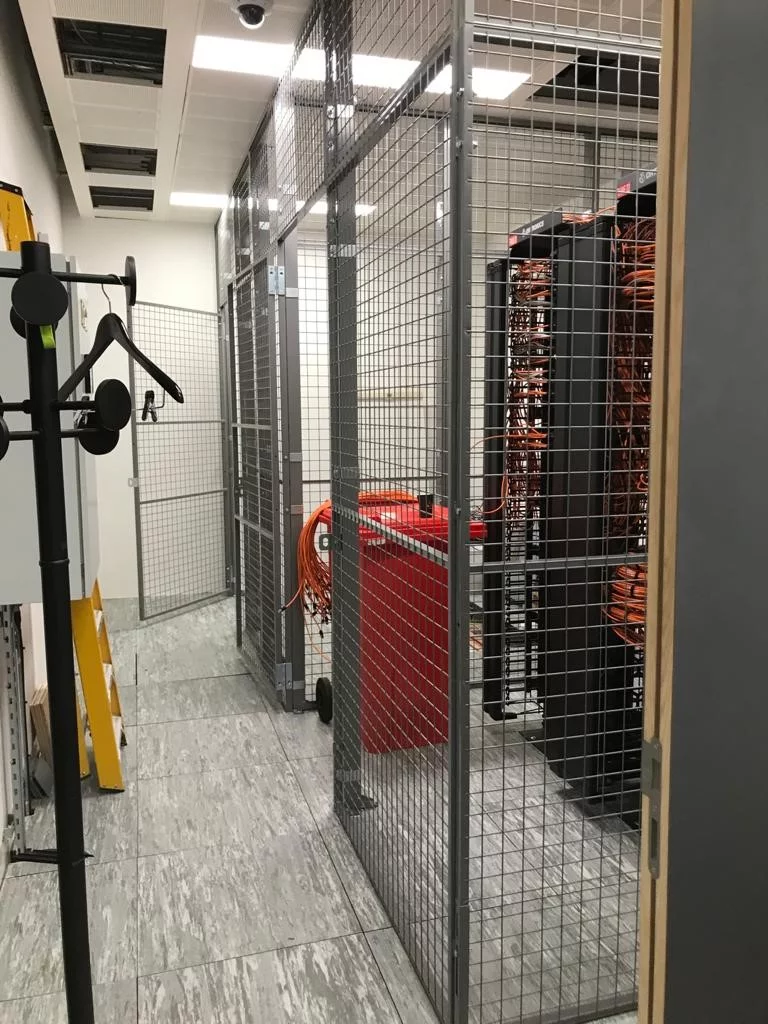

Server Rooms

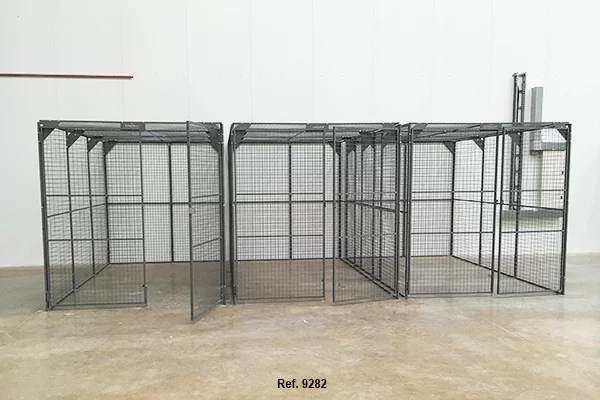

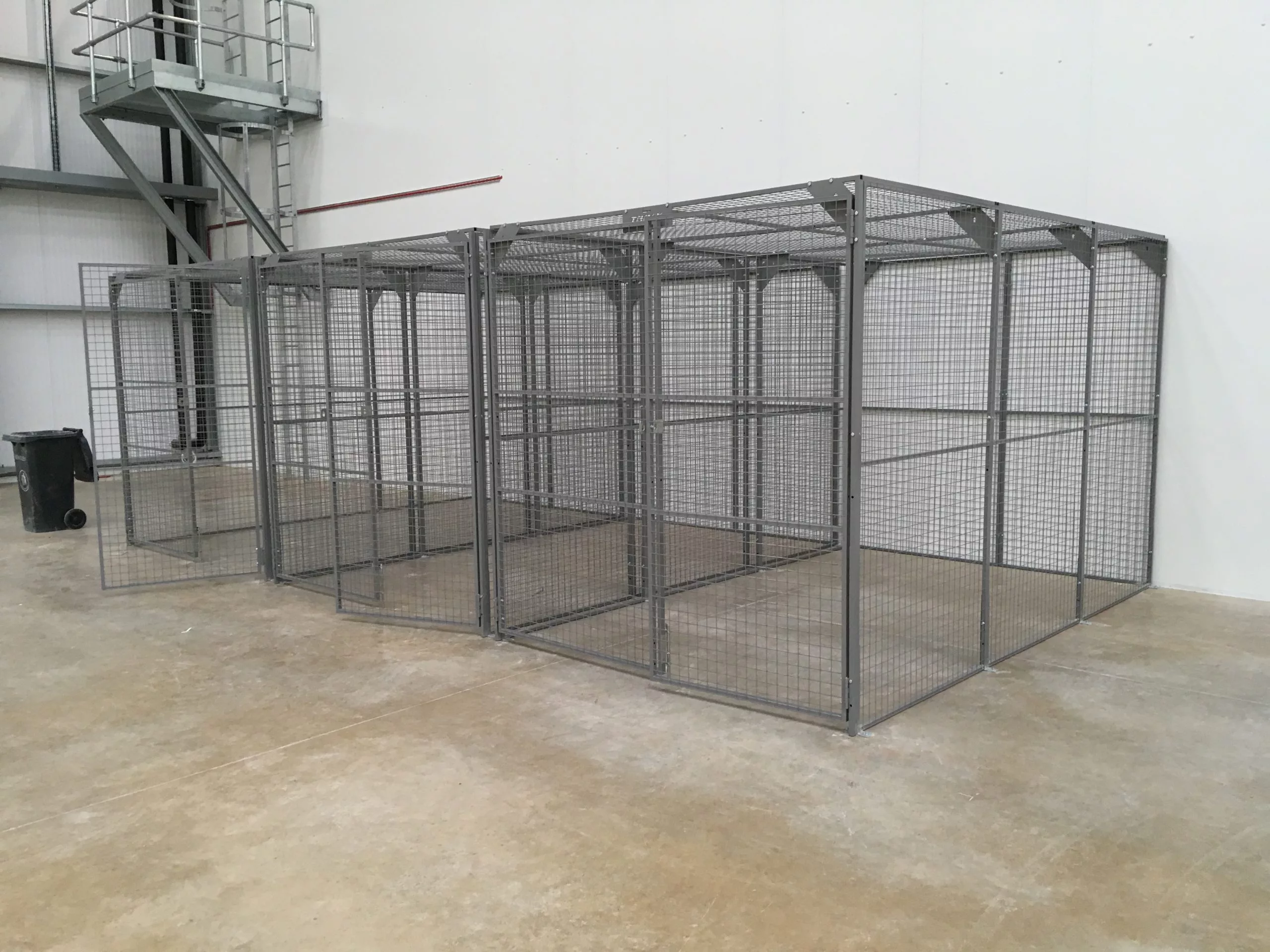

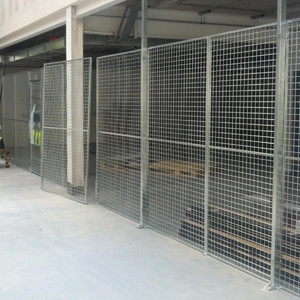

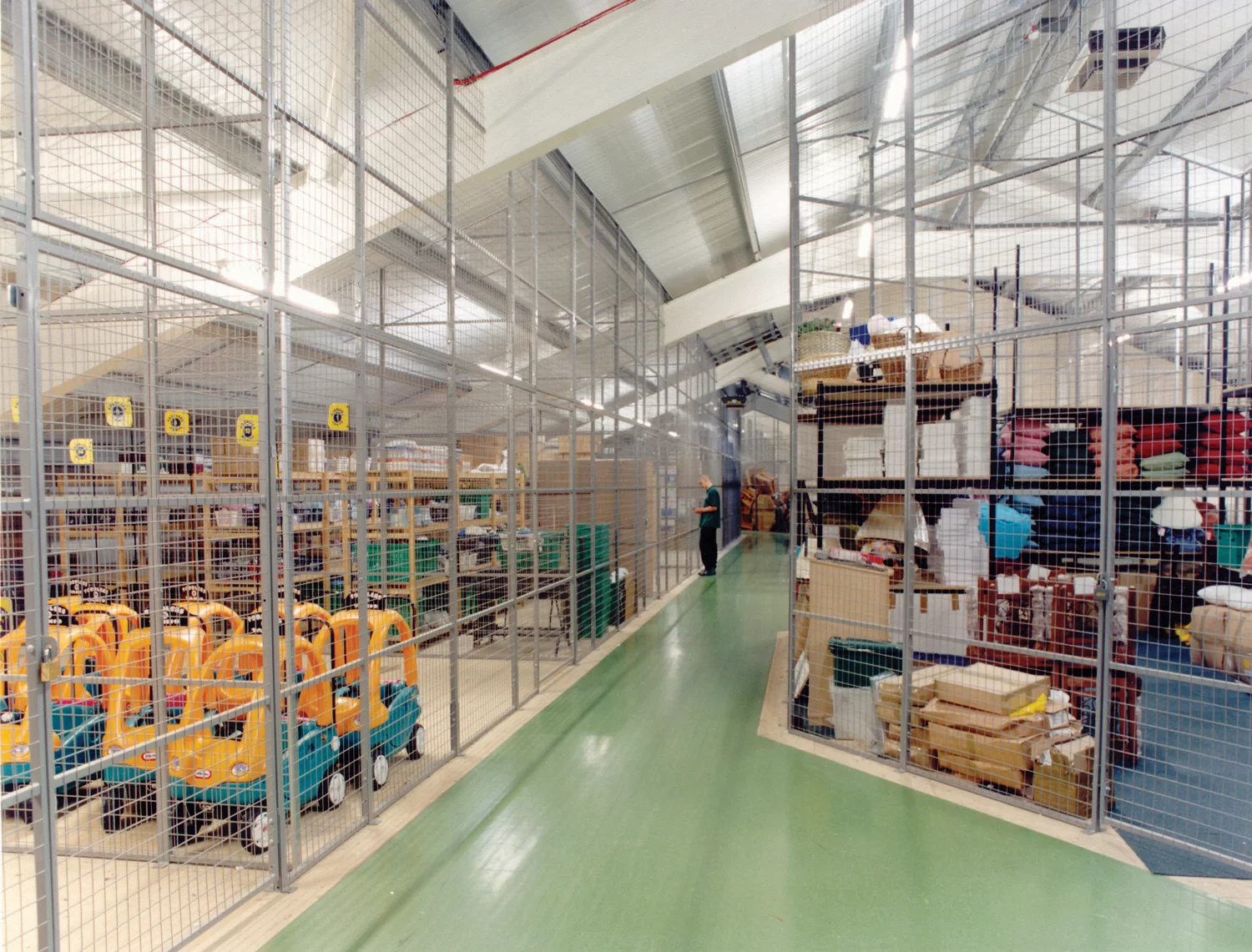

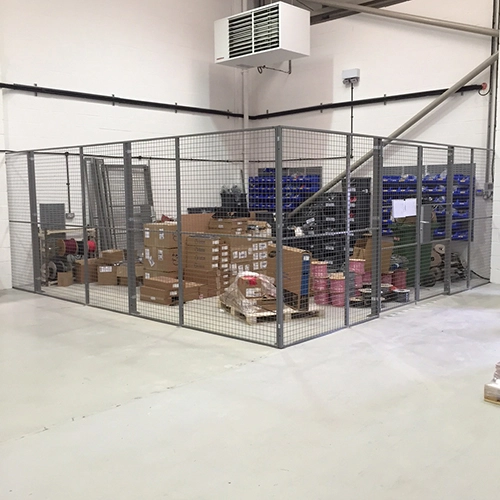

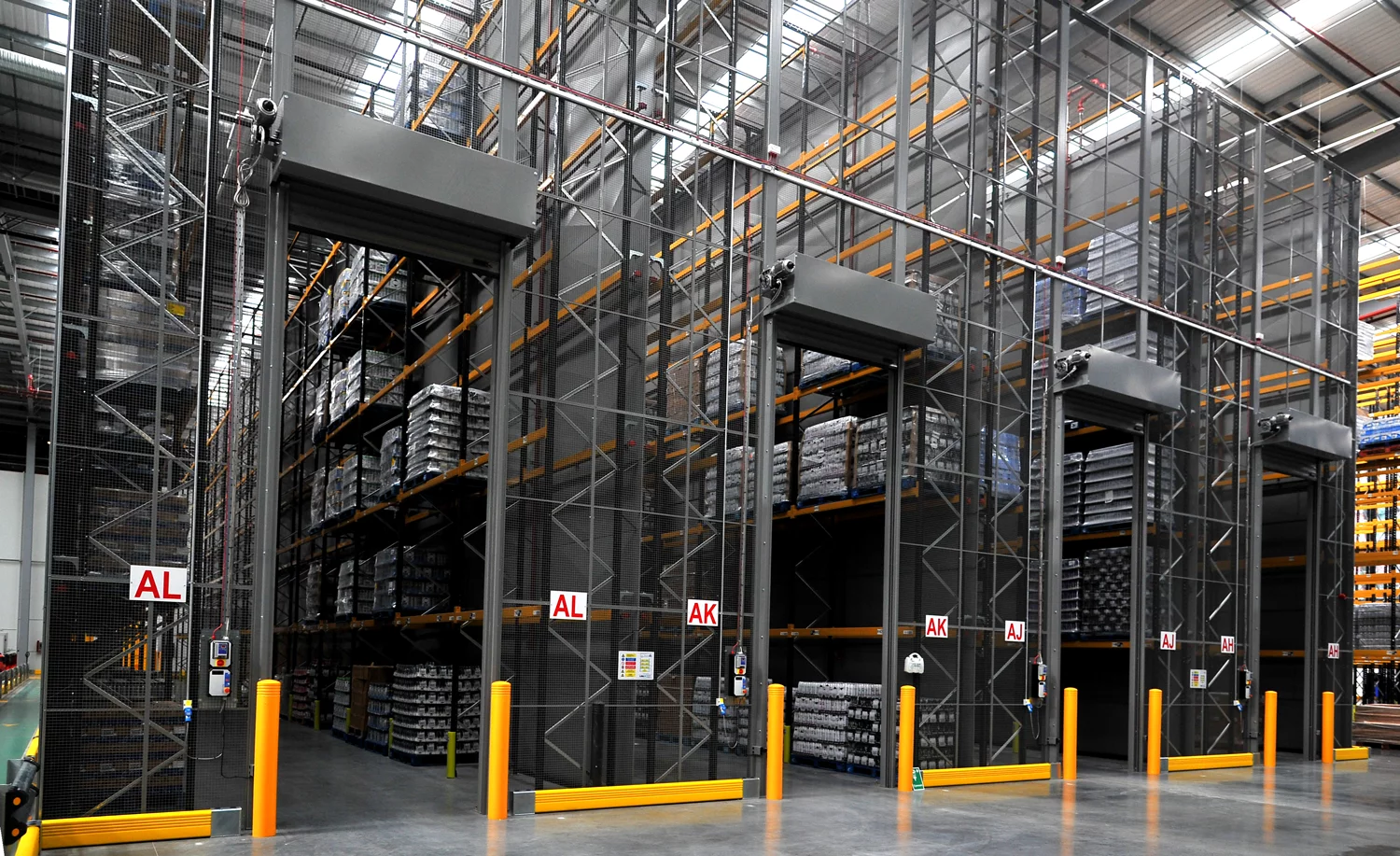

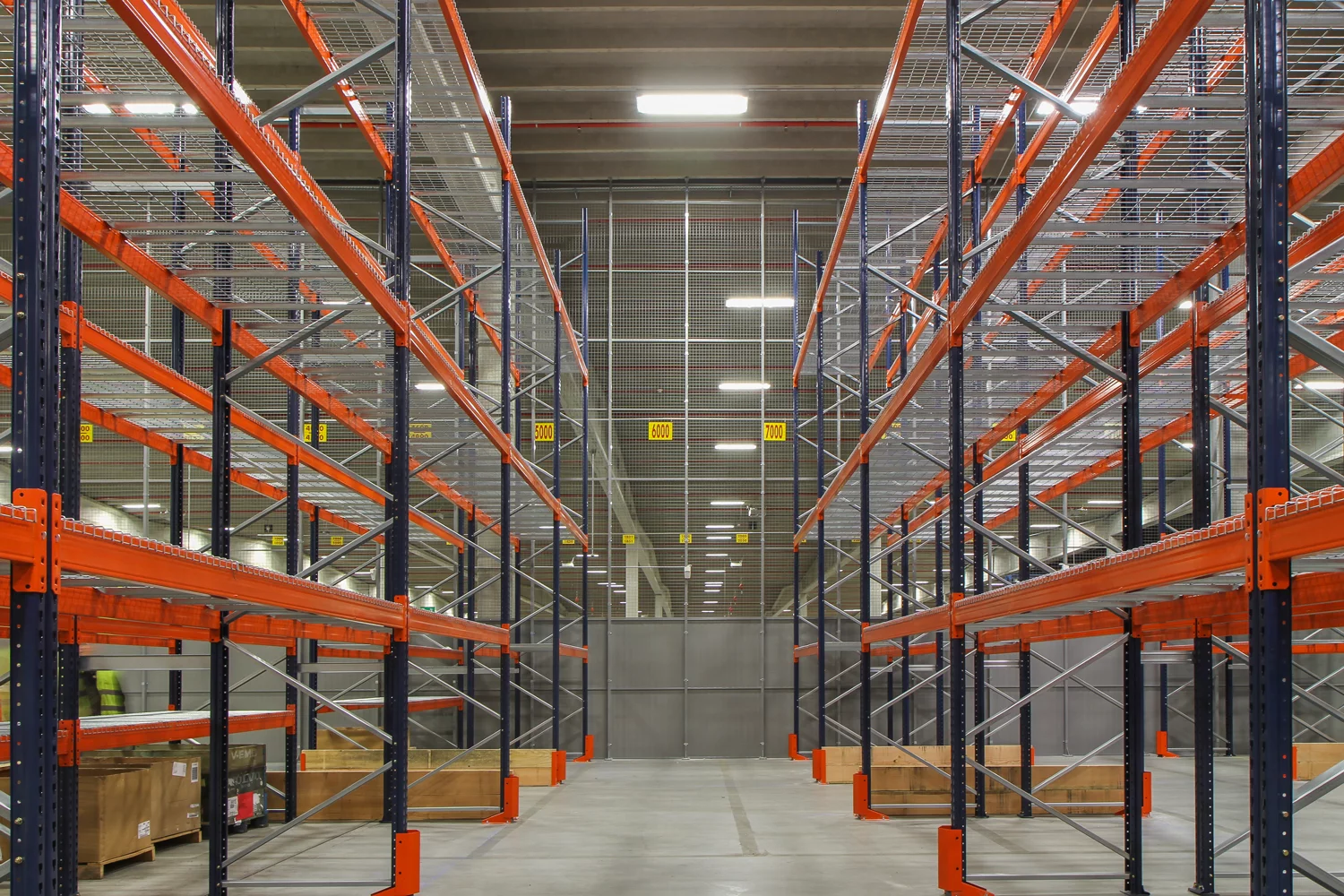

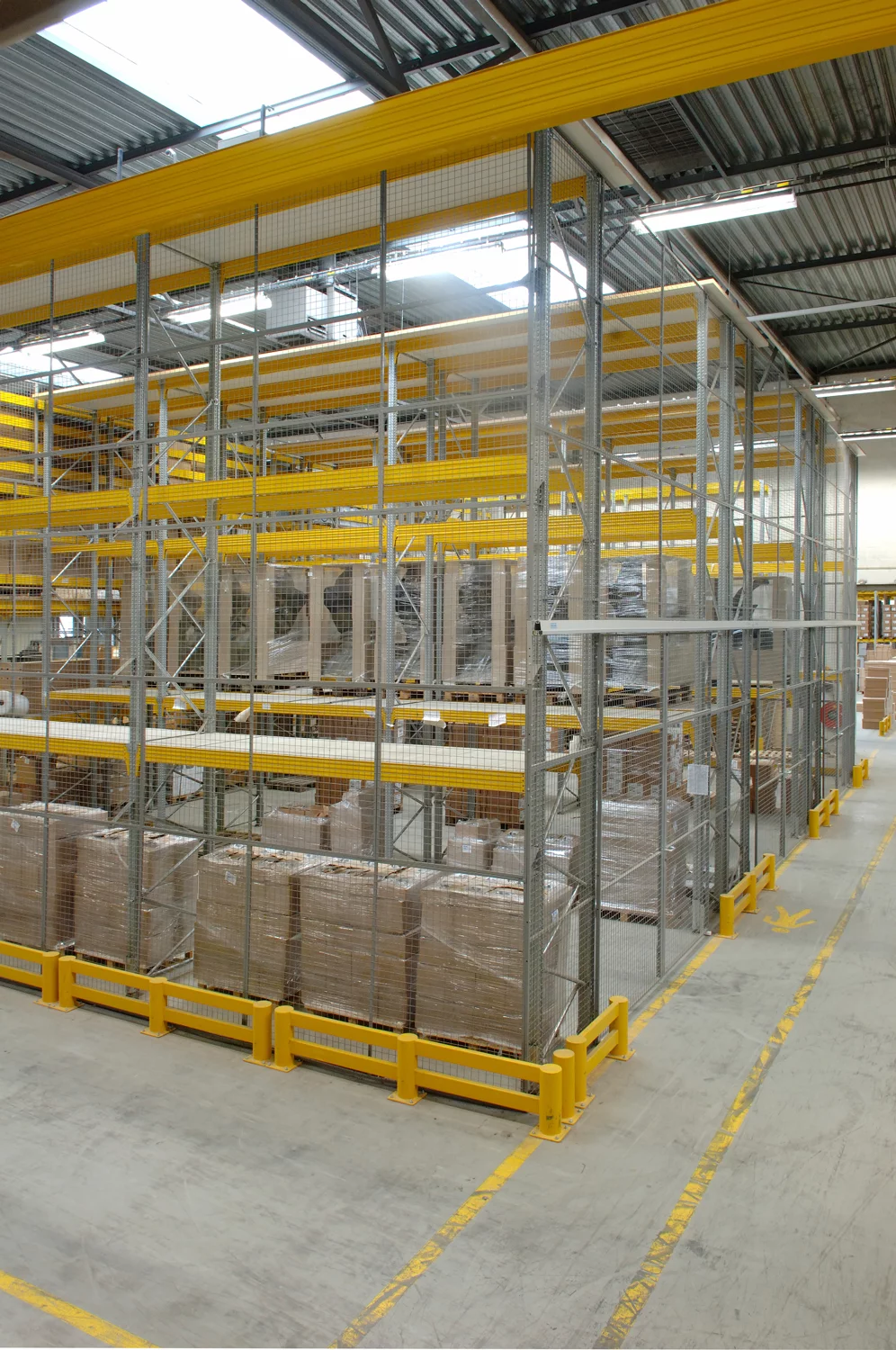

Warehouse Partitioning

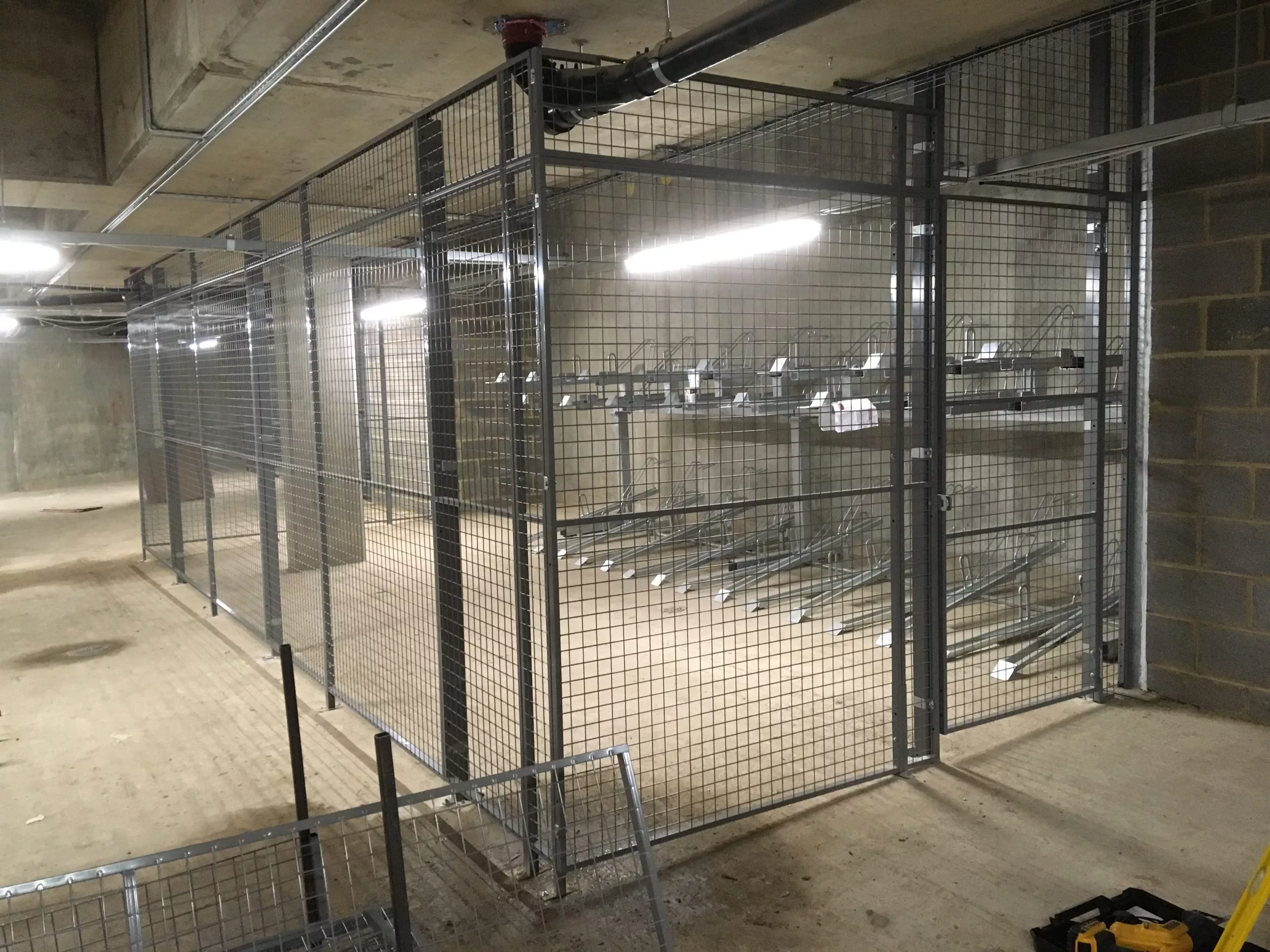

Underground Storage

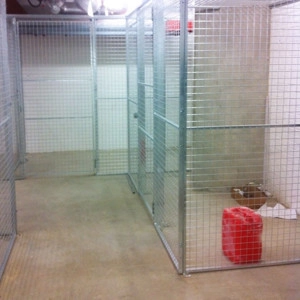

Residential Storage

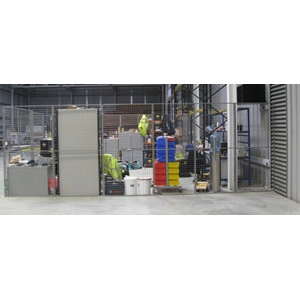

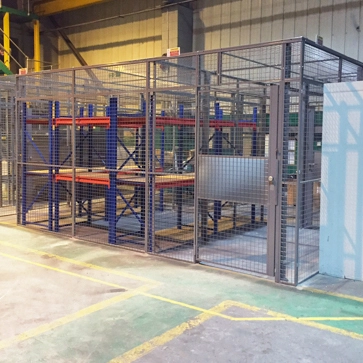

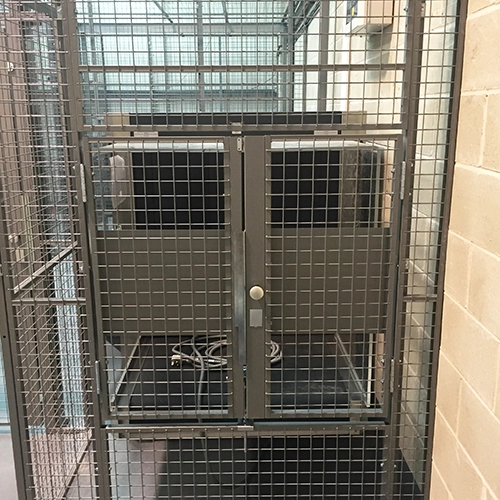

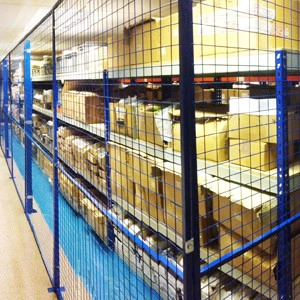

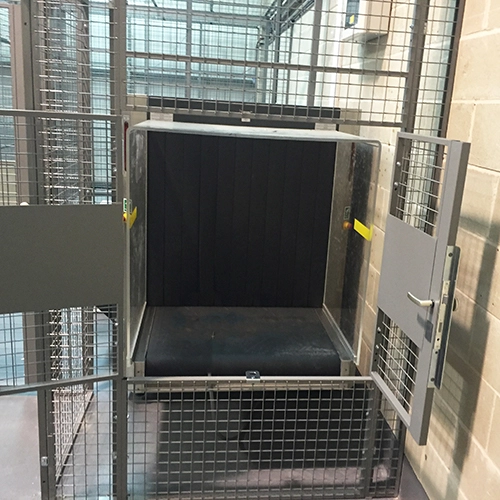

Stock Room Security

Drawings

Every bespoke mesh partitioning order comes with a full 3D Rendering of the site location, as well as a detailed drawing.

This ensures that you know exactly what to expect.

Please click on each drawing for a larger, more detailed image.

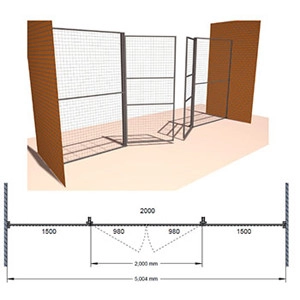

Single Side Partition: Ideal for blocking off access to a certain area.

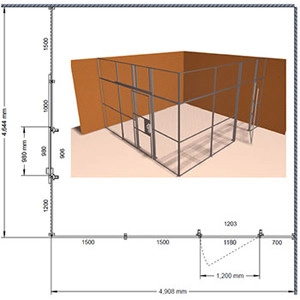

Two Sided: Suitable for creating a secure corner in a stock room or warehouse.

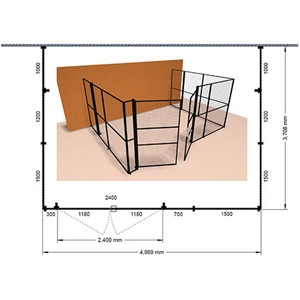

Three Sided: Often used in larger warehouses, our three sided enclosures provide secure working or storage areas.

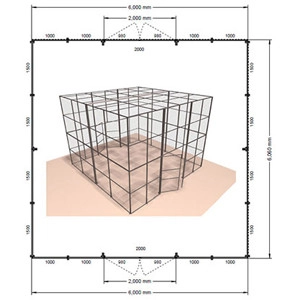

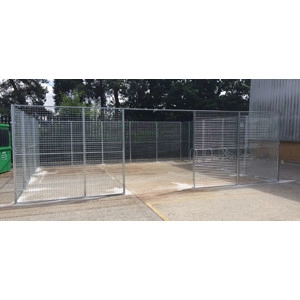

Four Sided: Standalone cages can be fitted with a room to create a completely secure unit, or left without to provide a free-standing area.
