Asecos – Recirculating Air filter System UFA.20.30 Tall Cabinets

Description

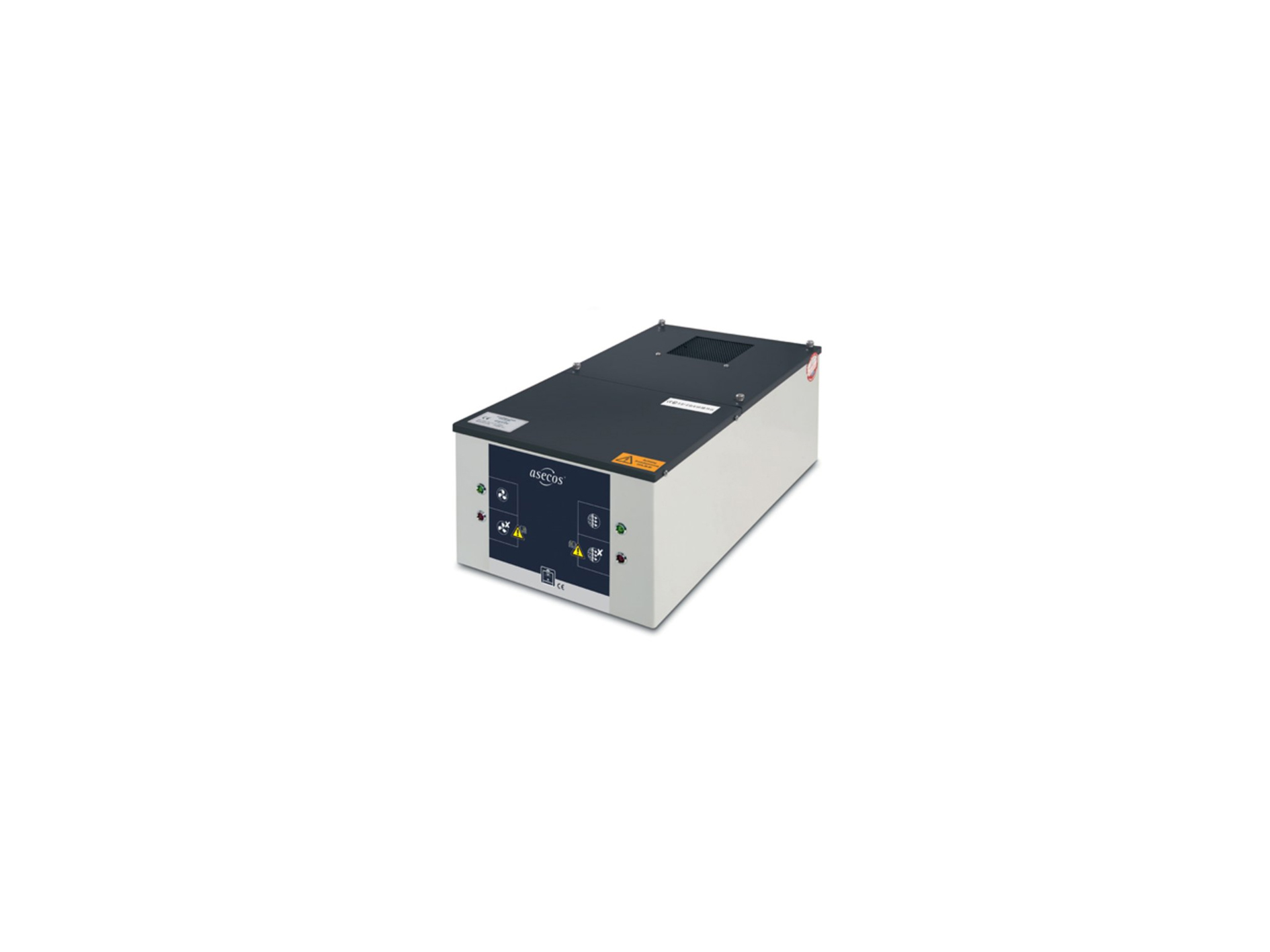

Asecos – Recirculating Air filter System UFA.20.30 Tall Cabinets Recirculating air filter system

Asecos – Recirculating Air filter System UFA.20.30 Tall Cabinets Recirculating air filter system –avoid complex wall breakthroughs and expensive exhaust air ducts
with the following specification :-

• High flexibility in choosing the installation location.
• Active personal protection through safe capture of harmful vapours with retention in the filter system.
• Very low noise, only approx. 39 dB (A).
• ATEX compliant: C`II 3/-G Ex ic nA IIB T4Gc.
• Housing made of sheet-steel powder-coated.
•  With multistage filter system and power cord.
• Incl. monitoring electronics for exhaust air and filter monitoring, EMC-tested by VDE.
• Optical and acoustic alarm including potential-free alarm contact.

The plug-in recirculating air filter system, type UFA.20.30 is capable of retaining solvent vapours (hydrocarbons) permanently up to a filter saturation, of more than 99.999%, under normal operating conditions as well as for a simulated accident in the safety storage cabinet.

A special version of the recirculating air filter system is also available to meet the pressure and volumentric flow conditions inside XL-drum cabinets.

Please adhere to the country-specific terms of use binding for you. In case of any doubt, the possible applications must be agreed with the
relevant authority.

Recirculating air filter system in accordance with RL 2006/95/EC (low-voltage directive)

DELIVERY ALLOW  4-8 WORKING WEEKS
