Description

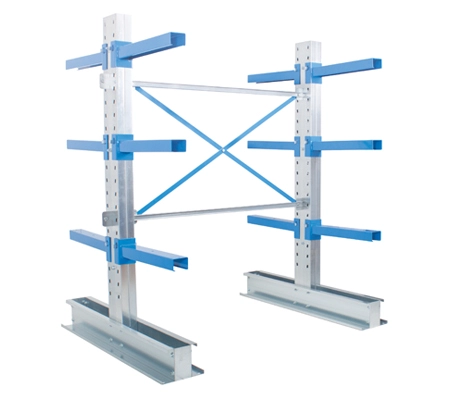

Our cantilever system is based on modular bays and fittings to provide cost effective storage of long and awkward items. The frames are available in three heights and three depths in both single and double sided configurations. Each bay comes complete with three arms per frame and you can add or deduct the number of levels required.
The arms can be fitted with end stops (at an additional cost shown) to secure any loose products from falling off. The frames are spaced 1000mm or 1500mm apart with bolted on X brace, so you can easily work out your run using the starter and extension bay.
Cantilever Racking Assembly Instructions
Cantilever Racking Concrete Base Spec

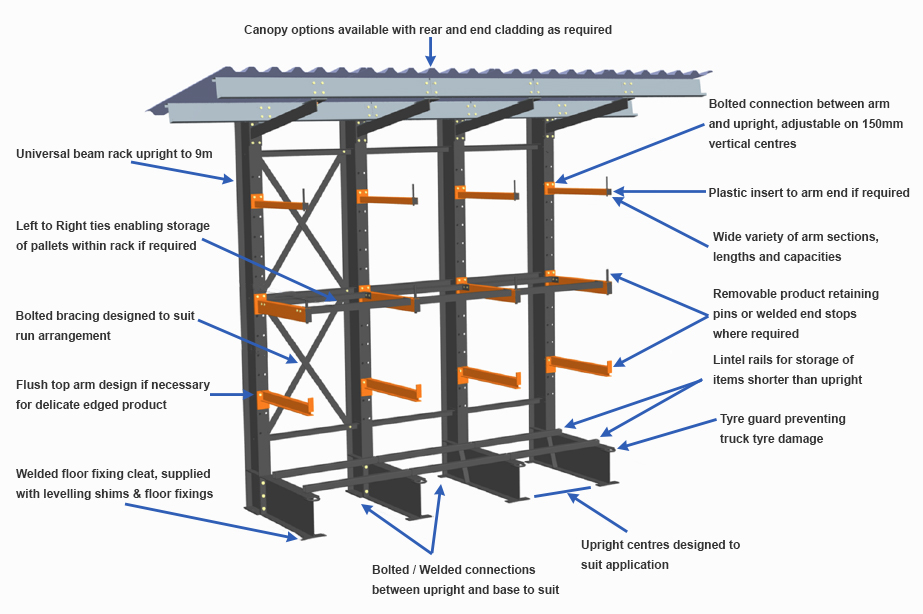

We also off a bespoke design service if you require a specific build. The racking diagram above gives you an example of such a build and its various parts, please click links to view. Please see our bespoke cantilever racking if you have further requirements.
