Description

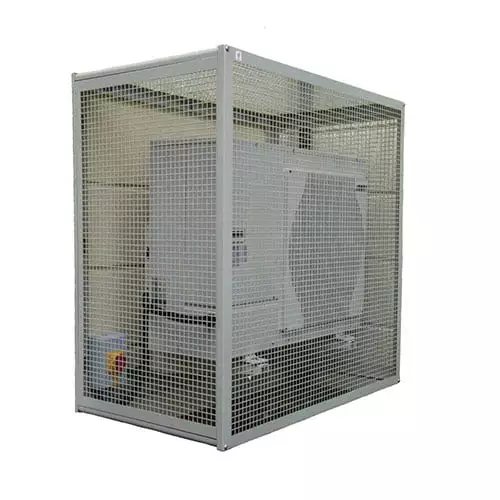

The split wall frame of these guards enable you to place a guard with ease, post the installation of the condensing unit.
You can work around pipework and electrical connections hassle-free. 750 refers to the depth of the guard.
Ideal for all manufacturers of air conditioning and air source heat pumps, including Daikin, Fujitsu, Hitachi, LG, Mitsubishi, Panasonic and Toshiba.
Features:
• Unique sliding panel system
• All panels can be removed for maintenance by unscrewing just four bolts
• All bolts are allen-headed for added security
• Quick and easy to install and access for maintenance
• Textured finish in RAL7032
|
Size |
Height (Ext.) | Width (Ext.) | Depth (Ext.) | Height (Int.) | Width (Int.) | Depth (Int.) |
Weight |
|
Small |
950mm |
1150mm | 750mm | 920mm | 1120mm | 740mm |
25kg |
|
Medium |
1150mm |
1150mm | 750mm | 1120mm | 1120mm | 740mm |
32kg |
|
Large |
1450mm |
1150mm | 750mm | 1420mm | 1120mm | 740mm |
33kg |
