Mesh panelled Platform Trucks

Description

Platform Trucks With Mesh Panels

Mesh panelled Platform Trucks.

Blue epoxy finished frame with removable zinc plated mesh side panels.

Handle ends are fully welded to all steel welded base.

Wheels: 2 swivel and 2 fixed castors with 160mm red centre wheels with rubber tyres and roller bearings.

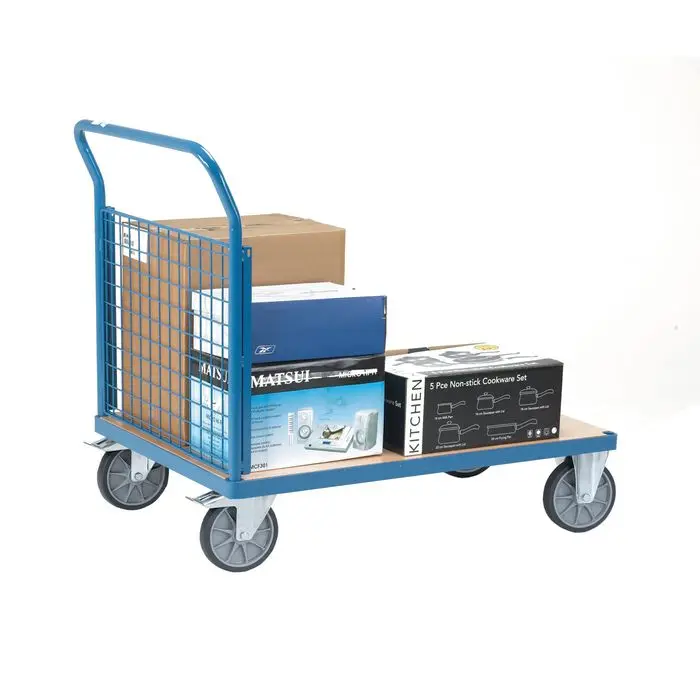

Single End Mesh Platform Truck

• H985 x W805 x D1285mm
• Castors: 2 swivel / 2 fixed 160mm
• Deck Length x Width 1200 x 800mm
• Deck Height: 235mm
• Weight: 37kgs
• Maximum Load: 500kg
• Finish: Blue Epoxy Coating

Welded Steel Sheet and Tube Mild Steel Sheet to BS EN 10130:2006 Steel Tube BS 6323 Part 5Mild Steel Mesh to BS 1052/1980 All welding to BS EN 287Plywood Deck

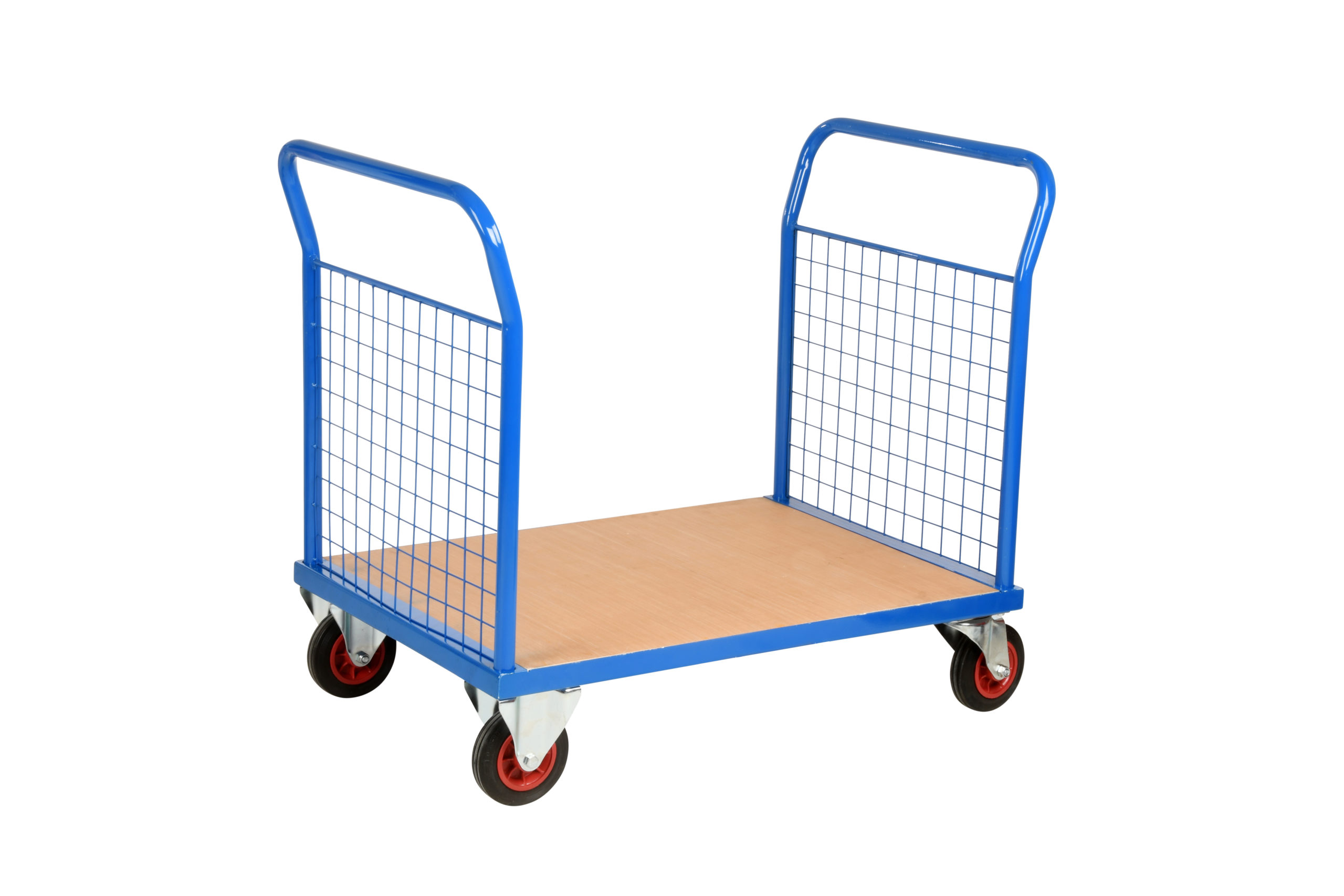

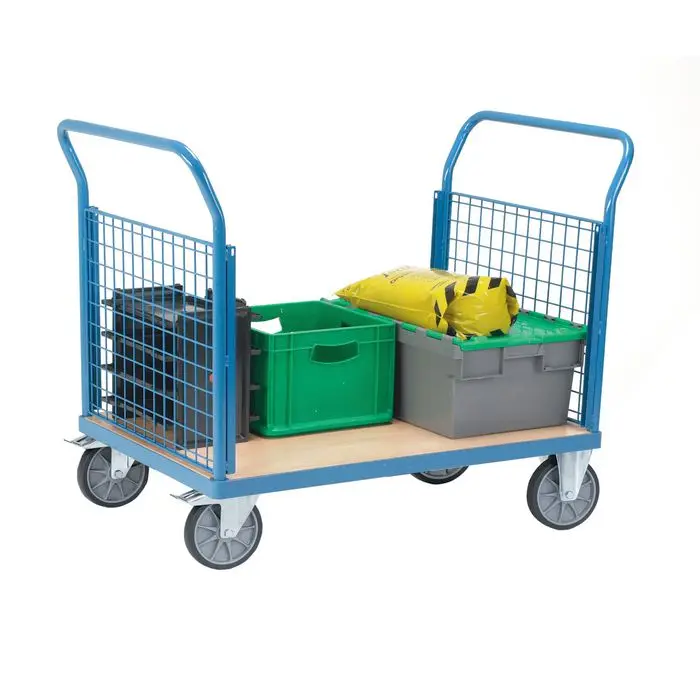

Double End Mesh Platform Truck

• H985 x W805 x D1345mm
• Castors: 2 swivel / 2 fixed 160mm
• Deck Length x Width 1200 x 800mm
• Deck Height: 235mm
• Weight: 44kgs
• Maximum Load: 500kg
• Finish: Blue Epoxy Coating

Welded Steel Sheet and Tube Mild Steel Sheet to BS EN 10130:2006 Steel Tube BS 6323 Part 5Mild Steel Mesh to BS 1052/1980 All welding to BS EN 287Plywood Deck

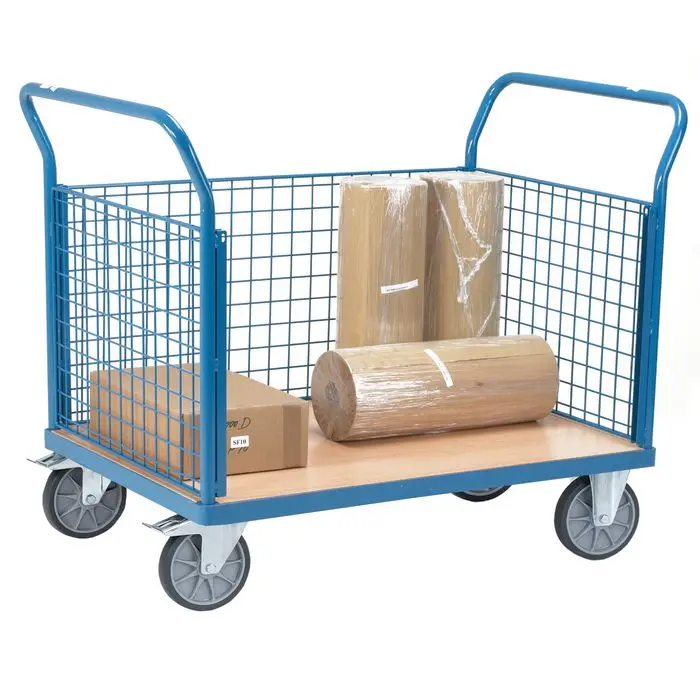

Three Sided Mesh Platform Truck

• H985 x W805 x D1345mm
• Castors: 2 swivel / 2 fixed 160mm
• Deck Length x Width 1200 x 800mm
• Deck Height: 235mm
• Weight: 48kgs
• Maximum Load: 500kg
• Finish: Blue Epoxy Coating

Welded Steel Sheet and Tube Mild Steel Sheet to BS EN 10130:2006 Steel Tube BS 6323 Part 5Mild Steel Mesh to BS 1052/1980 All welding to BS EN 287Plywood Deck

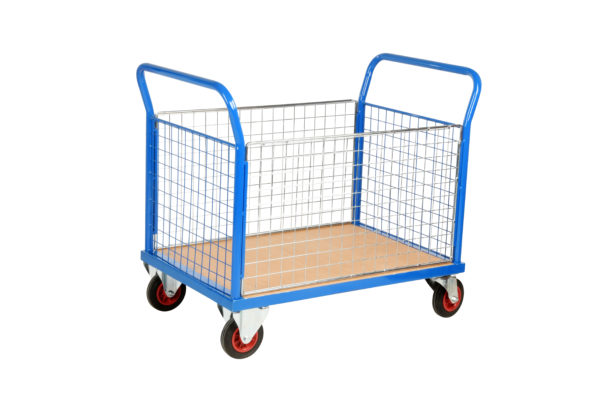

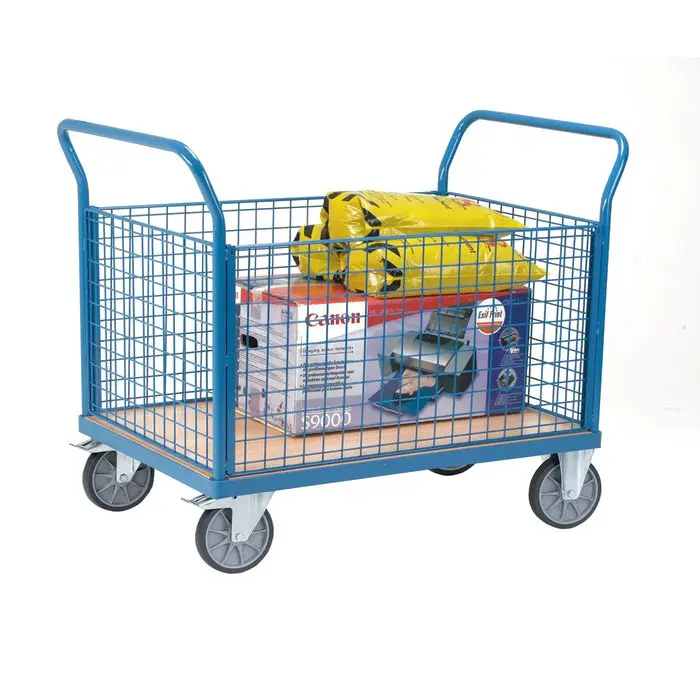

Four Sided Mesh Platform Truck

• H985 x W805 x D1345mm
• Castors: 2 swivel / 2 fixed 160mm
• Deck Length x Width 1200 x 800mm
• Deck Height: 235mm
• Weight: 52kgs
• Maximum Load: 500kg
• Finish: Blue Epoxy Coating

Welded Steel Sheet and Tube Mild Steel Sheet to BS EN 10130:2006 Steel Tube BS 6323 Part 5Mild Steel Mesh to BS 1052/1980 All welding to BS EN 287Plywood Deck
