Description
Platform Trucks
Large standard Euro Platform.
Substantial timber deck, all steel welded frame.
Wheels: 2 swivel and 2 fixed castors with 160mm red centre wheels with rubber tyres and roller bearings.

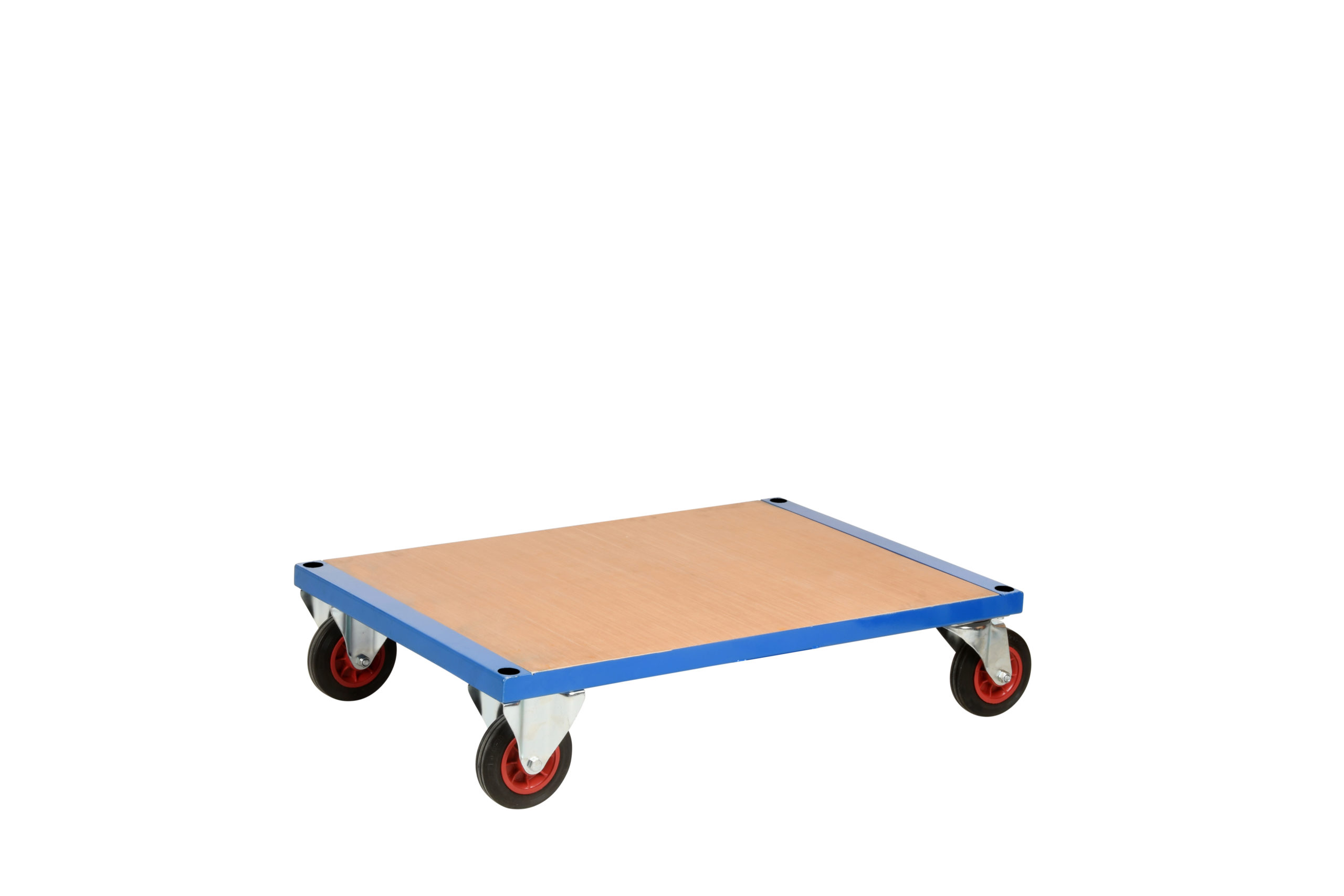

Platform Truck:
- H235 x W805 x D1210mm
- Castors: 2 swivel / 2 fixed 160mm
- Deck Length x Width 1200 x 800mm
- Deck Height: 235mm
- Weight: 33kgs
- Maximum Load: 500kg
- Finish: Blue Epoxy Coating
Welded Steel Sheet Mild Steel Sheet to BS EN 10130:2006 All welding to BS EN 287Plywood Deck

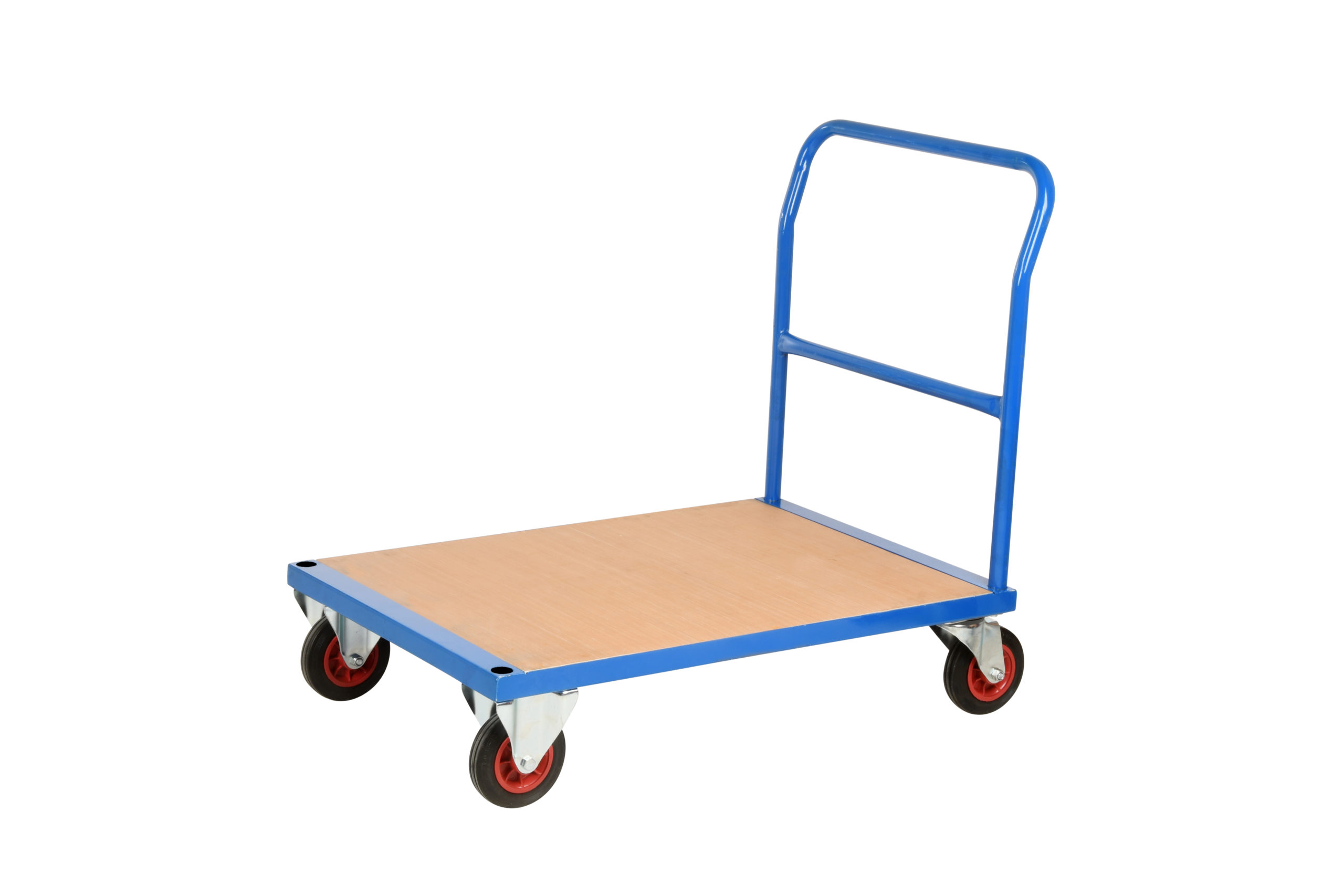

Single End Platform Truck
- H985 x W805 x D1285mm
- Castors: 2 swivel / 2 fixed 160mm
- Deck Length x Width 1200 x 800mm
- Deck Height: 235mm
- Weight: 38kgs
- Maximum Load: 500kg
- Finish: Blue Epoxy Coating
Welded Steel Sheet and Tube Mild Steel Sheet to BS EN 10130:2006 Steel Tube BS 6323 Part 5All welding to BS EN 287Plywood Deck

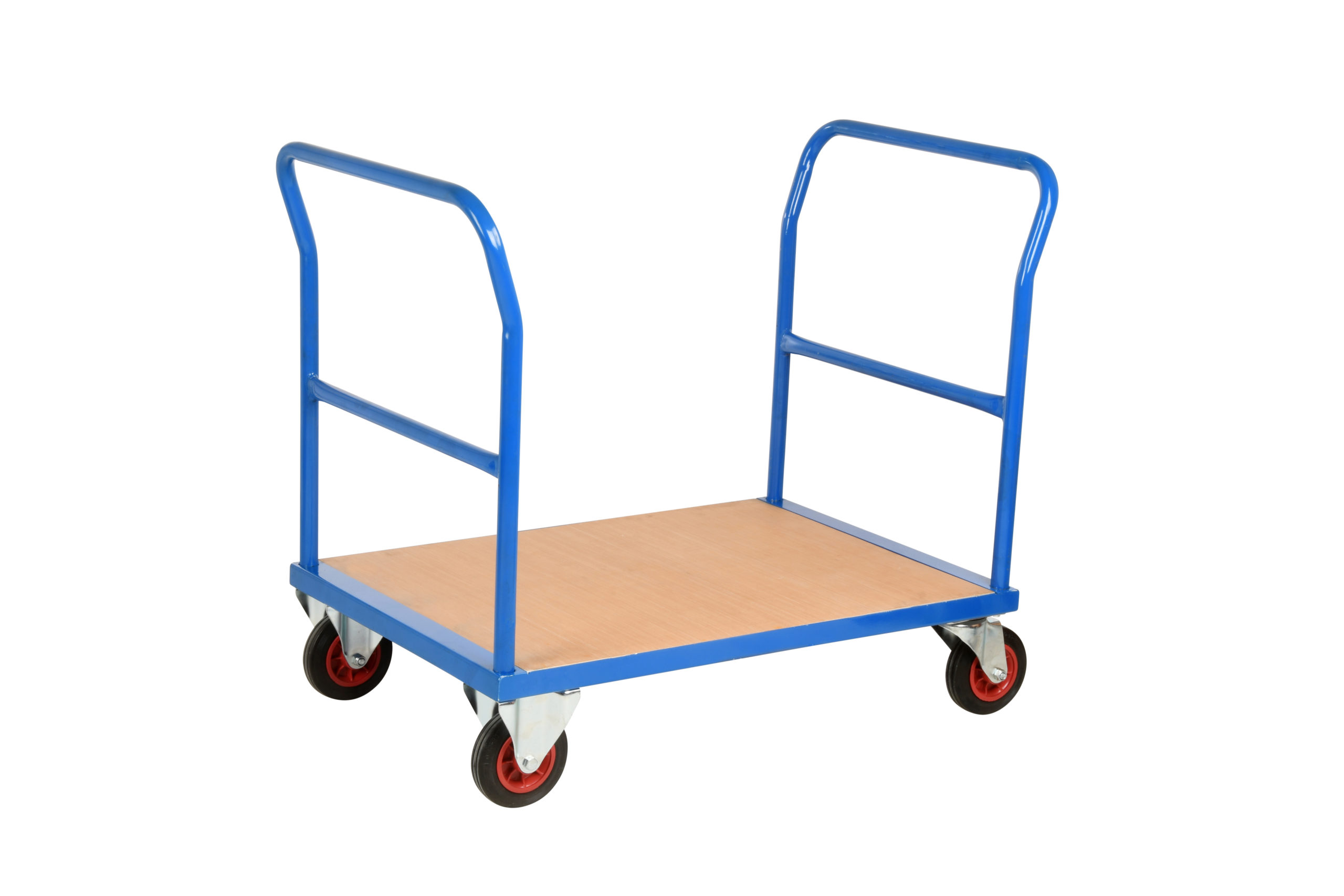

Double End Platform Truck
- H985 x W805 x D1345mm
- Castors: 2 swivel / 2 fixed 160mm
- Deck Length x Width 1200 x 800mm
- Deck Height: 235mm
- Weight: 42kgs
- Maximum Load: 500kg
- Finish: Blue Epoxy Coating
Welded Steel Sheet and Tube Mild Steel Sheet to BS EN 10130:2006 Steel Tube BS 6323 Part 5All welding to BS EN 287Plywood Deck
