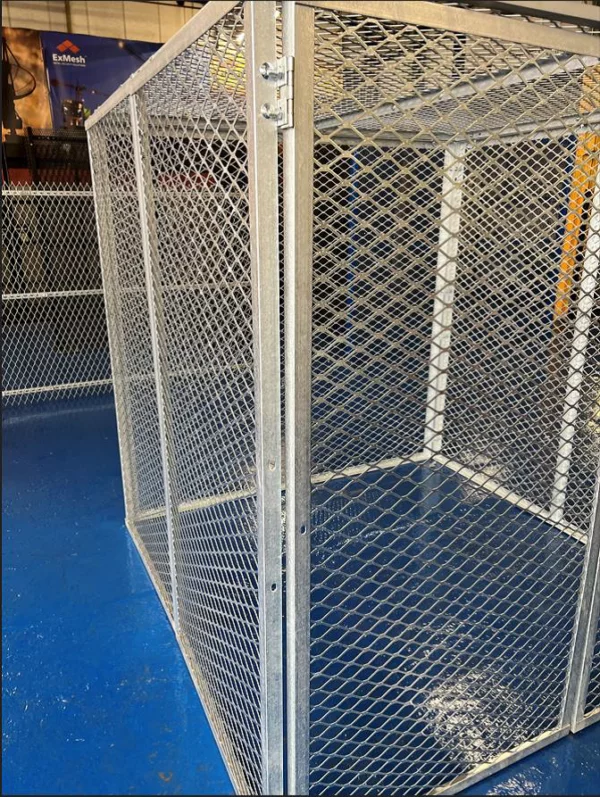

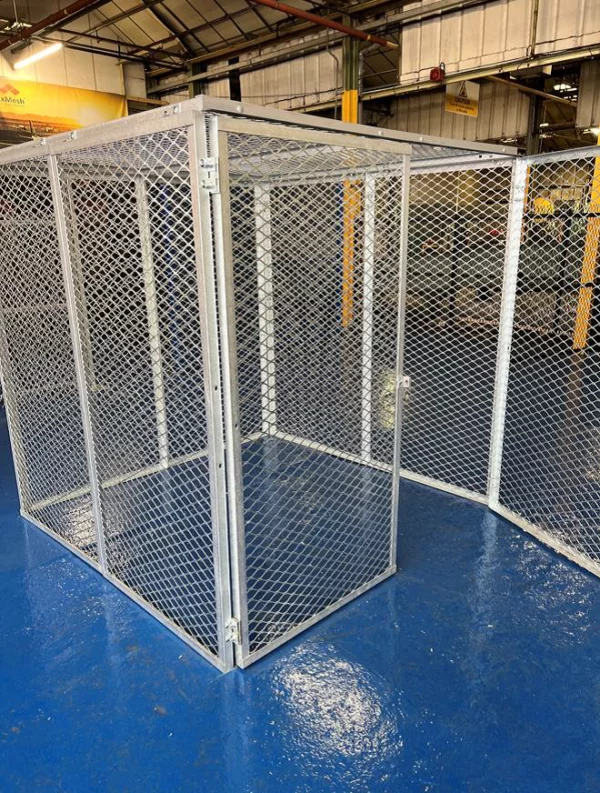

High Security ExMesh HD Cage

Description

Stakrak’s own design!

Our High Security ExMesh HD Cage offers a superior level of security, utilising heavy-duty modular expanded mesh panels, manufactured with a hot-dip galvanised finish to a very high standard.

H2000 x W2000 x D2000mm

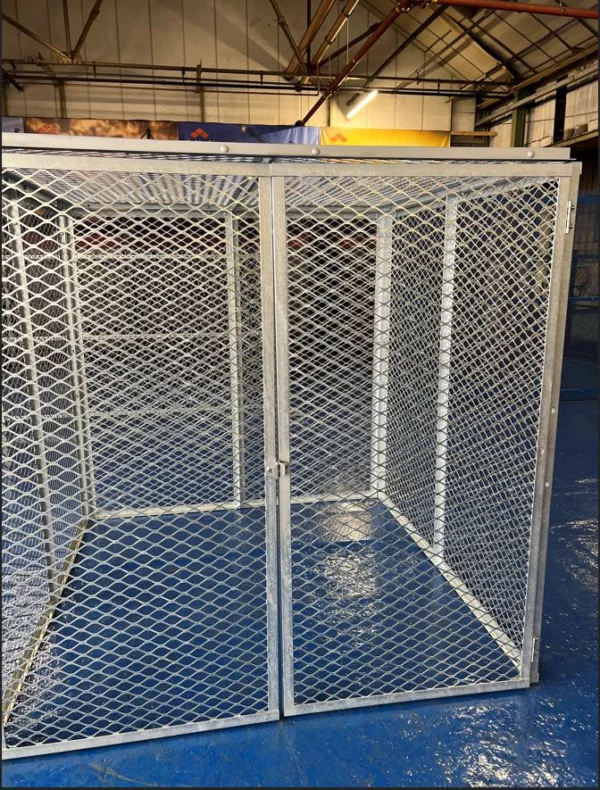

Five sided c/w double doors

Low profile threshold

Key Features

• Internal and external use
• Strong and durable, with high impact resistance
• Lockable with variety of padlocks
• Suitable for machine guarding
• Simple installation
• Ease of transportation
• Single or double door offering
• Bespoke sizes available
• Can be configured to a range of sizes, within 1000mm intervals

Modular Panel System

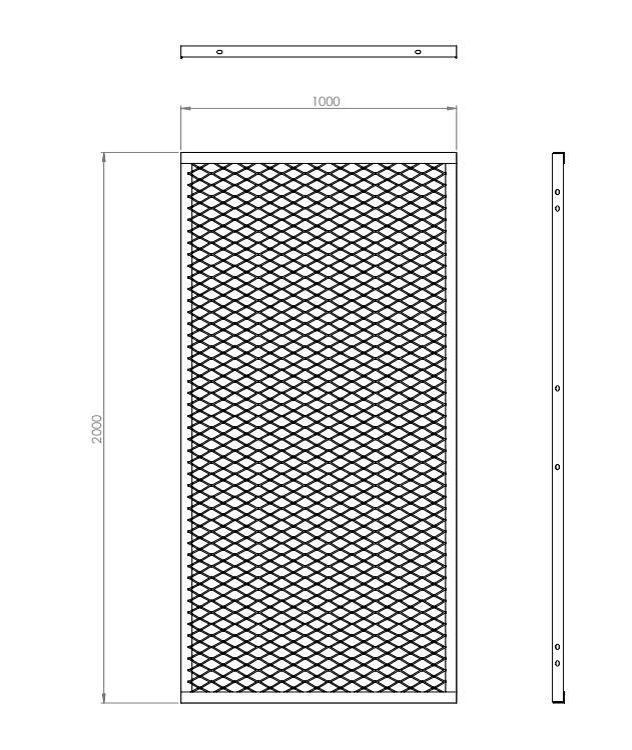

• 1000(W)mm x 2000(H)mm universal panel
• Robust 40x40x3 RSA frame
• Bolted together using M10x20 carriage bolts
• 3394F expanded metal infill
• Bolted into ground using M10x85 anchor bolts
• Doors are 987(W)mm x 1974(H)mm to allow for ground clearance
• Horizontal roof bracing provided for all cages greater than 2000mm wide

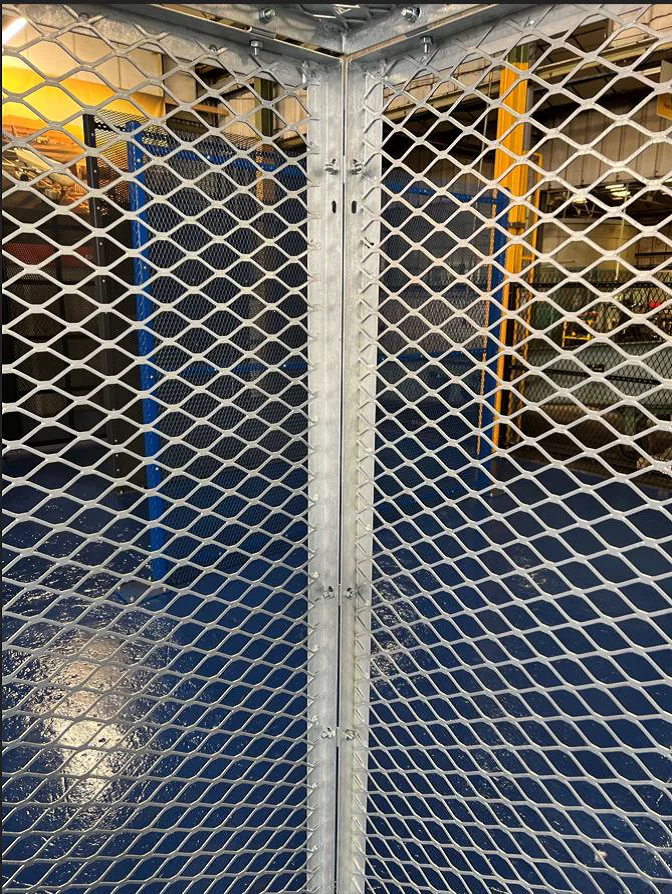

• Connected at corners using 40x40x3x40 RSA cleats, bolted securely with M10x20 carriage bolts.
• 11mm floor fixing points

Material

Short Description                       Aperture Short Way
3394F                                                 37.08
Raised or Flattened                   Strand Thickness
Flattened                                           2.5
Material                                        Strand Thickness AF
Steel                                                   2.16
Pitch LWP                                    Strand Width
85.73                                                  4.75
Pitch SWP                                   Strand Width AF
39.33                                                 5.49
Aperture Long Way                  Shape
69.85                                                 Diamond
